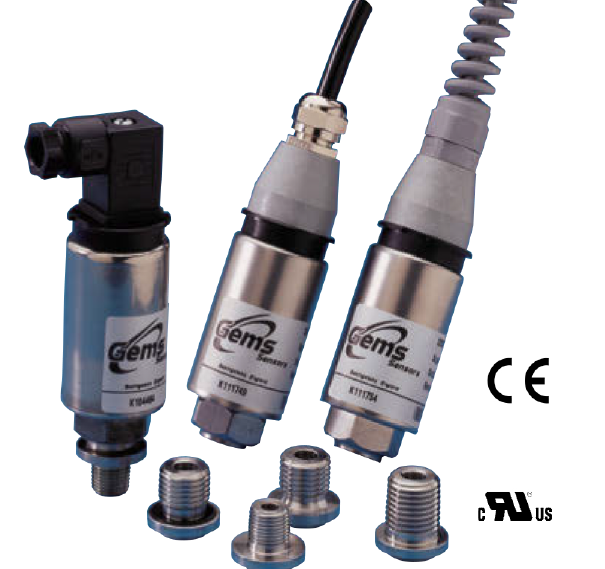

Representative photo. Please check item description for details.
Model: Series 2600 Output: {R} 0-5 V Pressure Datum: {G} Gauge Pressure Range: {H50} 0-5000 psi Pressure Port: {0E} 1/4"-18 NPT Internal Electrical Connection: {C} Fixed Plug Size 10-6 Mating Plug Not Supplied Apparatus Protection: {3} Amplified Only RFI Protection CE Mark, UR Cable Length: {U} No Cable Fitted (5)PC MIN.ORDER
Performance Code:
{A} 0.25% Accuracy, 1.5% Thermal Error
(for 2200/2600) (A) 0.5% Accuracy, 2.0%
Thermal Error (for 1200/1600)
(5)PC MIN.ORDER
Performance Code:
{A} 0.25% Accuracy, 1.5% Thermal Error
(for 2200/2600) (A) 0.5% Accuracy, 2.0%
Thermal Error (for 1200/1600)
(5)PC MIN.ORDER
Specifications
| Measurement Maximum | 5000.0 |
| Process Connection Type | NPT |
| Process Connection Location | Bottom |
| Case Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 2-wire |
