TESCOM™ 26-2000 Series Venting Pressure Regulator
Representative photo. Please check item description for details.

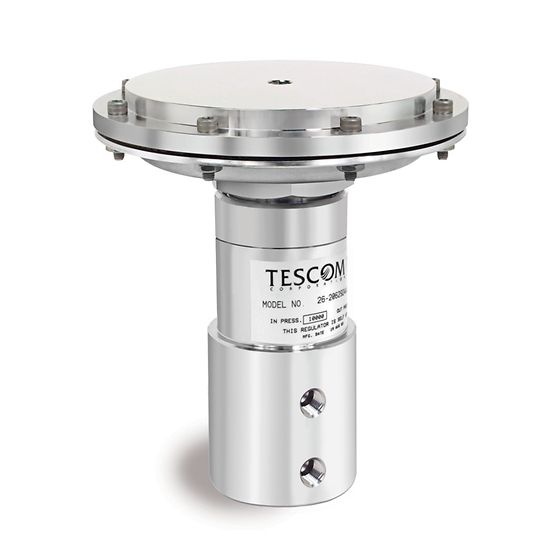

TESCOM™ 26-2000 Series Venting Pressure Regulator

https://www.branom.com/web/image/product.template/545628/image_1920?unique=c26756c
(0 review)

Pressure RatingMaximum Inlet Pressure and Maximum Outlet Pressure: See Part Number Selector
MaterialBody: 316 Stainless Steel or Brass
Seat, Vent, Main Valve, O-Ring: See Part Number Selector
Back-up Ring: Teflon®
Filter 26-201XX-XX: Bronze
26-202XX-XX: 300 Series Stainless Steel
Remaining Parts316 Stainless Steel and 17-4 Stainless Steel
Operating Temperature-15°F to 165°F / -26°C to 73°C
Port Size & Type1/4, 3/8, 1/2
SAE, NPTF, MS33649, High Pressure/Aminco, Medium Pressure/Slimline
Vent Port: 1/4 SAE, 1/4 NPTF, 1/4 MS33649
Flow CapacityCv = 0.02, 0.06, 0.12, or 0.30
Load TypeSpring, Dome, Air


$ 2,176.00 2176.0 USD $ 2,176.00

$ 2,176.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Pressure RatingMaximum Inlet Pressure and Maximum Outlet Pressure: See Part Number Selector
    MaterialBody: 316 Stainless Steel or Brass
    Seat, Vent, Main Valve, O-Ring: See Part Number Selector
    Back-up Ring: Teflon®
    Filter 26-201XX-XX: Bronze
    26-202XX-XX: 300 Series Stainless Steel
    Remaining Parts316 Stainless Steel and 17-4 Stainless Steel
    Operating Temperature-15°F to 165°F / -26°C to 73°C
    Port Size & Type1/4, 3/8, 1/2
    SAE, NPTF, MS33649, High Pressure/Aminco, Medium Pressure/Slimline
    Vent Port: 1/4 SAE, 1/4 NPTF, 1/4 MS33649
    Flow CapacityCv = 0.02, 0.06, 0.12, or 0.30
    Load TypeSpring, Dome, Air
