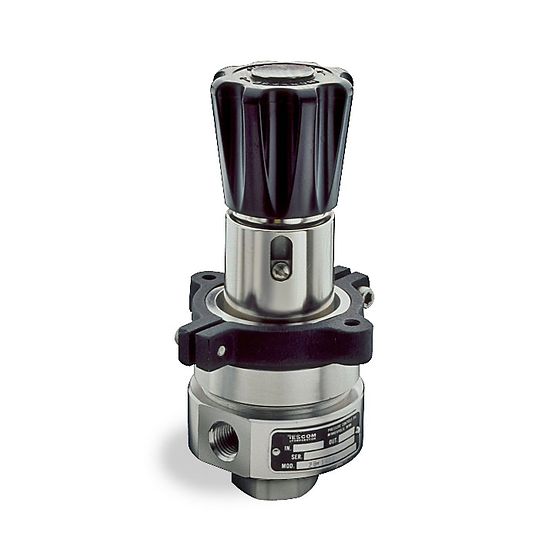

TESCOM™ 26-1600 Series Venting Pressure Regulator, 1/4" MS33649 Ports
Representative photo. Please check item description for details.

TESCOM™ 26-1600 Series Venting Pressure Regulator, 1/4" MS33649 Ports

https://www.branom.com/web/image/product.template/548677/image_1920?unique=c26756c
(0 review)

Maximum Inlet Pressure Stainless: 6000 psig / 414 bar
Aluminum, Brass: 5000 psig / 345 bar
Outlet Pressure Ranges0-50, 0-150, 0-250, 0-500 psig / 0-3.4, 0-10.3, 0-17.2, 0-34.5 bar
MaterialBody and Bonnet: 316 Stainless Steel, Aluminum (2024-T351), Brass
40 Micron Filter: 300 Series Stainless Steel
O-Ring and Diaphragm: Buna-N
Valve SeatMain: CTFE
Vent: 15% graphite-filled Teflon®
Remaining Parts300 Series Stainless Steel
Operating Temperature-40°F to 165°F / -40°C to 74°C
Port Size & TypeInlet & Outlet Port Type: MS33649
Inlet & Outlet Port Size: 1/4
Flow CapacityCv = 0.08
Load TypeSpring
