TESCOM 26-1600 Series Pressure Regulator
Representative photo. Please check item description for details.

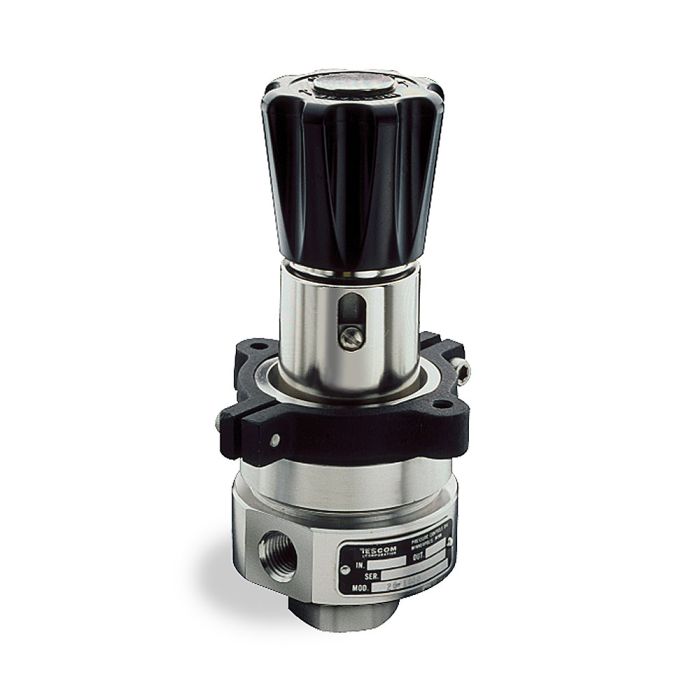

TESCOM 26-1600 Series Pressure Regulator

https://www.branom.com/web/image/product.template/548374/image_1920?unique=c26756c
(0 review)

Maximum Inlet Pressure
Stainless: 6000 psig / 414 bar
Aluminum, Brass: 5000 psig / 345 bar
Outlet Pressure Ranges
0-50, 0-150, 0-250, 0-500 psig
0-3.4, 0-10.3, 0-17.2, 0-34.5 bar
Material
Body and Bonnet: 316 Stainless Steel, Aluminum (2024-T351), Brass
40 Micron Filter: 300 Series Stainless Steel
O-Ring and Diaphragm: Buna-N
Valve Seat
Main: CTFE
Vent: 15% graphite-filled Teflon®
Remaining Parts: 300 Series Stainless Steel
Operating Temperature: -40°F to 165°F / -40°C to 74°C
Port Size & Type
Inlet & Outlet Port Type: SAE, NPTF, MS33649
Inlet & Outlet Port Size: 1/4, 3/8, 1/2 (Stainless Steel only)
Flow Capacity: Cv = 0.08
Load Type: Spring
