TESCOM™ 26-1200 Dome Loaded Pressure Regulator

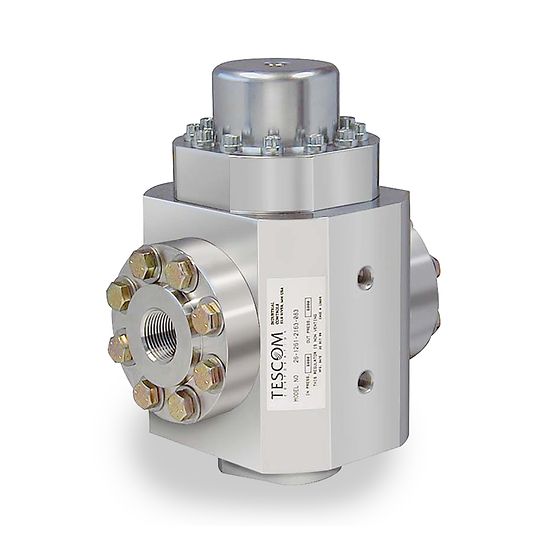

Representative photo. Please check item description for details.

TESCOM™ 26-1200 Dome Loaded Pressure Regulator

https://www.branom.com/web/image/product.template/544070/image_1920?unique=c26756c
(0 review)

Pressure RatingMaximum Inlet Pressure: 3600 and 6000 psig / 248 and 414 bar
Outlet Pressure: To maximum inlet
MaterialBody: 303, 316 Stainless Steel
Seat: CTFE or Vespel®
Diaphragm, O-Rings: Buna-N or Viton®
Back-up Rings: Teflon®
Remaining Parts: 300 Series Stainless Steel
Port Size & TypeCv = 3.3: 3/4 or 1, SAE, NPTF or MS33649
Cv = 6.0: 3/4, 1 or 1-1/4, SAE or MS33649
Cv = 12.0: 1 or 1-1/4, SAE, NPTF or MS33649
Cv = 20.0: 2 ANSI/ASME Flanges or Grayloc
Operating Temperature (Cv = 3.3)-40 to 165°F / -40 to 74°C
Operating Temperature (Cv = 6.0)Buna-N: -40 to 165°F / -40 to 74°C
Viton®: -15 to 165°F / -26 to 74°C
Operating Temperature (Cv = 12.0)-15 to 165°F / -26 to 74°C
Operating Temperature (Cv = 20.0)-40 to 200°F / -40 to 93°C
Flow CapacityCv = 3.3, 6.0, 12.0 or 20.0
