TESCOM™ 26-1100 Dome Loaded Pressure Reducing Regulator

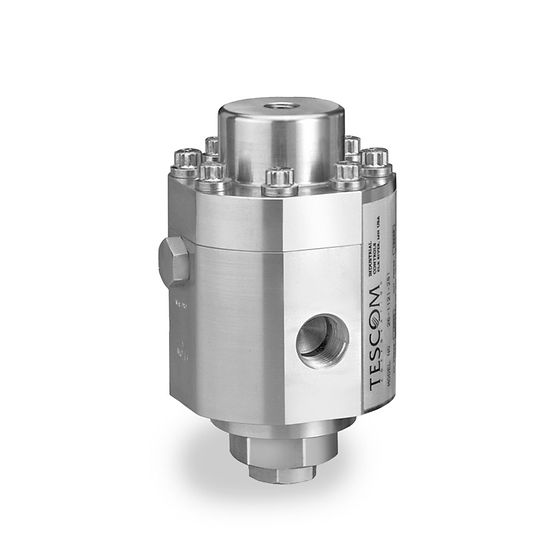

Representative photo. Please check item description for details.

TESCOM™ 26-1100 Dome Loaded Pressure Reducing Regulator

https://www.branom.com/web/image/product.template/537432/image_1920?unique=c26756c
(0 review)

Maximum Inlet PressureStainless Steel Body (0.25 Orifice): 10,000 psig / 690 bar
(0.375 Orifice): 6,000 psig / 414 bar
Aluminum Body: 6,000 psig / 414 bar
Brass Body: 6,000 psig / 414 bar
Outlet Pressure RangesTo Maximum Inlet
Body Material303 Stainless Steel, 316 Stainless Steel, Aluminum, or Brass
Diaphragm & O-RingsBuna-N
Back-up RingsPTFE
Seat MaterialCTFE
Retaining Rings15-7 Stainless Steel
Valve Cap17-4 Stainless Steel
Remaining Parts300 Series Stainless Steel
Operating Temperature-40°F to 165°F / -40°C to 74°C
Port Size & TypeInlet & Outlet Port Type: SAE, NPTF, MS33649
Dome Port: 1/4 MS33649, 1/4 NPTF, 1/4 MS33649
Inlet & Outlet Port Size: 3/8, 1/2
Flow Capacity0.25 Orifice: Cv = 0.46
0.375 Orifice: Cv = 1.30
Load TypeDome
