SM312D - MINI-BEAM DC Voltage Series Sensor

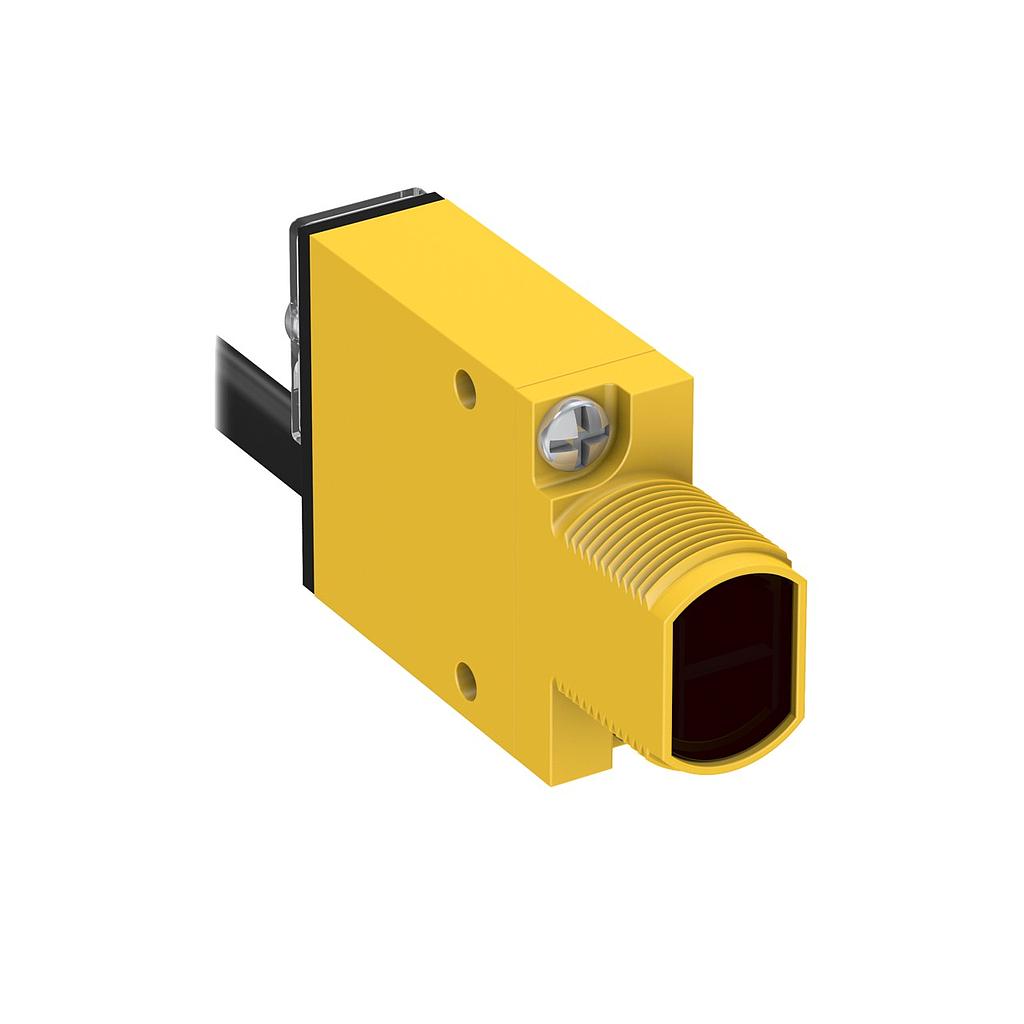

Representative photo. Please check item description for details.

SM312D - MINI-BEAM DC Voltage Series Sensor

https://www.branom.com/web/image/product.template/11233/image_1920?unique=c26756c
(0 review)

Features:

    MINI-BEAM: Diffuse; Range: 380 mm; Input: 10-30V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) cable
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Case Material: Thermoplastic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Output Communication Protocol: PNP, NPN
  • Input Voltage: 10-30 VDC
  • Ingress Protection: IP67
  • Repeatability (µs): 300
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 380 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Audible: No
  • Number of Pins: 4
  • Output Response Time: 1 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Connection Type: Cable
  • Sensing Mode: Diffuse
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 159.00 159.0 USD $ 159.00

$ 159.00

Not Available For Sale
