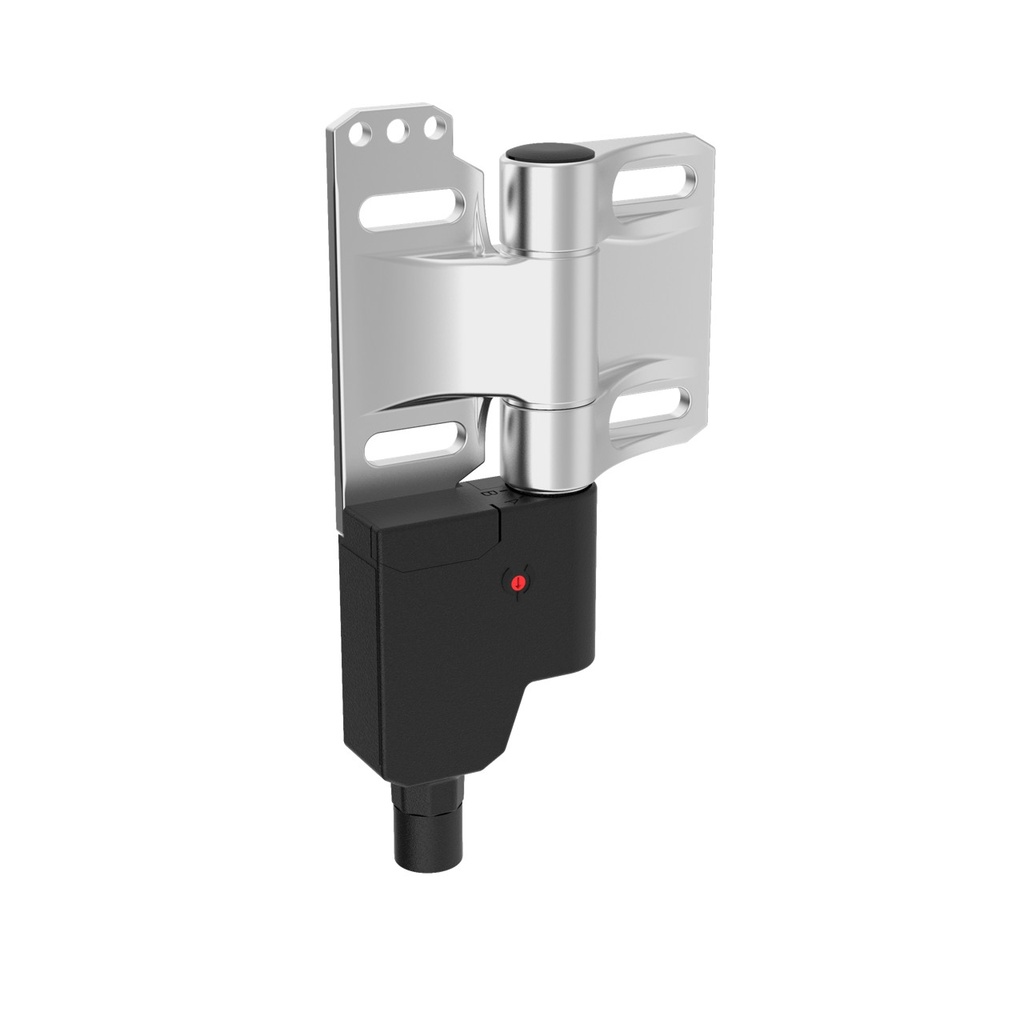

Hinge Safety Interlock Switch (SI-HGZ63FQDL)

https://www.branom.com/web/image/product.template/11217/image_1920?unique=c26756c
(0 review)

Features:

  • Hinge Safety Interlock Switch
  • Die-Cast Zinc
  • Inline QD
  • Switch Mounted Left Side w/QD Down
  • 2 NC/1 NO
  • Micro M12 6-pin (Dual Key) QD
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 70 °C
  • Ingress Protection: IP67
  • Device Type: Hinge
  • Housing Material_: Zinc Die Cast/Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 6
  • PL Rating: e
  • SISTEMA: B10d = 2 million
  • SIL Rating: SIL CL 3
  • Safety Category Rating: 4
  • Feature: Lockable: No
  • Feature: Auxiliary Output: No
  • Device Shape: Hinge
  • Switch Style: Contact
  • Coding Level/Tamper Resistance: Uncoded
  • Actuator (Safety) Contacts: 2 NC/1 NO
  • Safety Category: Cat 4
  • Switch Point Positioning: Re-Positionable
  • Range of Motion: 270°
  • Connection Type: M12
  • Feature: ISD Connect Compatible: Yes
  • Feature: In-Series Diagnostics: No
  • Mechanical Life: 1 mil

$ 198.00 198.0 USD $ 198.00

$ 198.00

Not Available For Sale

    This combination does not exist.
