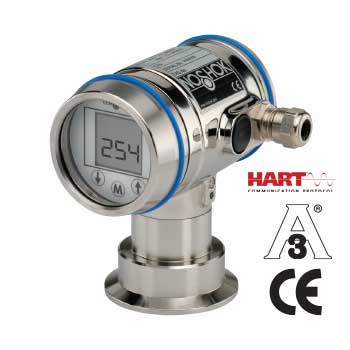

25 Series Intelligent Pressure & Level Transmitter, 0 inH2O to 160 inH2O
- Easy programming and range adjustment without test pressure via on-board display
- 4:1 turn down
- Active temperature compensation
- Hart® protocol output available
- All Stainless Steel housing and wetted parts
Applications:
- Food & dairy
- Chemical processing
- Pharmaceutical
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Easy programming and range adjustment without test pressure via on-board display
- 4:1 turn down
- Active temperature compensation
- Hart® protocol output available
- All Stainless Steel housing and wetted parts
Applications:
- Food & dairy
- Chemical processing
- Pharmaceutical
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Measurement Maximum | 160.0 |
| Process Connection Type | Tri-Clamp |
| Product Unit of Measure | in.H20 |
| Process Connection Size | 2" |
| Accuracy | 0.2% of adjusted span |
| Measurement Minimum | 40 |
| Output Communication Protocol | 4-20 mA, 2-wire |
| Electrical Connector Type | M12 x 1 (4-pin) |
