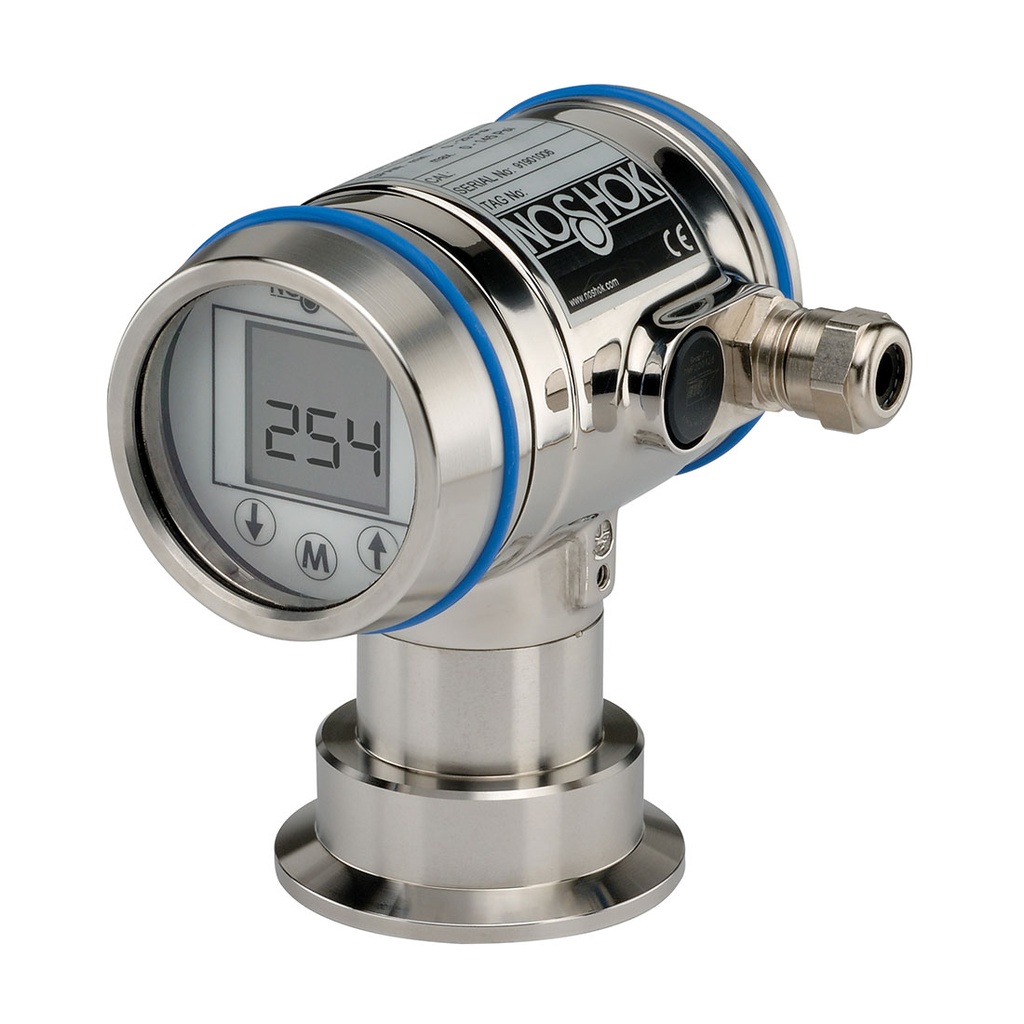

Representative photo. Please check item description for details.
25 Series Intelligent Pressure & Level Transmitter, 29 psig to 145 psig, Transparent Cover (for display)
- Easy programming and range adjustment without test pressure via on-board display
- 4:1 turn down
- Active temperature compensation
- Hart® protocol output available
- All Stainless Steel housing and wetted parts
Applications:
- Food & dairy
- Chemical processing
- Pharmaceutical
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Easy programming and range adjustment without test pressure via on-board display
- 4:1 turn down
- Active temperature compensation
- Hart® protocol output available
- All Stainless Steel housing and wetted parts
Applications:
- Food & dairy
- Chemical processing
- Pharmaceutical
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Measurement Maximum | 145.0 |
| Process Connection Type | Tri-Clamp |
| Pressure Range | 29 psig to 145 psig |
| Min Operating Pressure | 29 psig |
| Max Operating Pressure | 145 psig |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 212 °F |
| Process Connection Size | 2" |
| Accuracy | 0.2% of adjusted span |
| Wetted Material | 316 SS |
| Measurement Minimum | 29 |
| Output Communication Protocol | 4-20 mA, 2-wire, Hart signal4-20 mA, 2-wire, Hart signal |
| Input Voltage | 12-36 VDC |
| Ingress Protection | IP66 |
| Response Time | ≤100 ms |
| Electrical Connector Type | PG9 Cable Gland |
