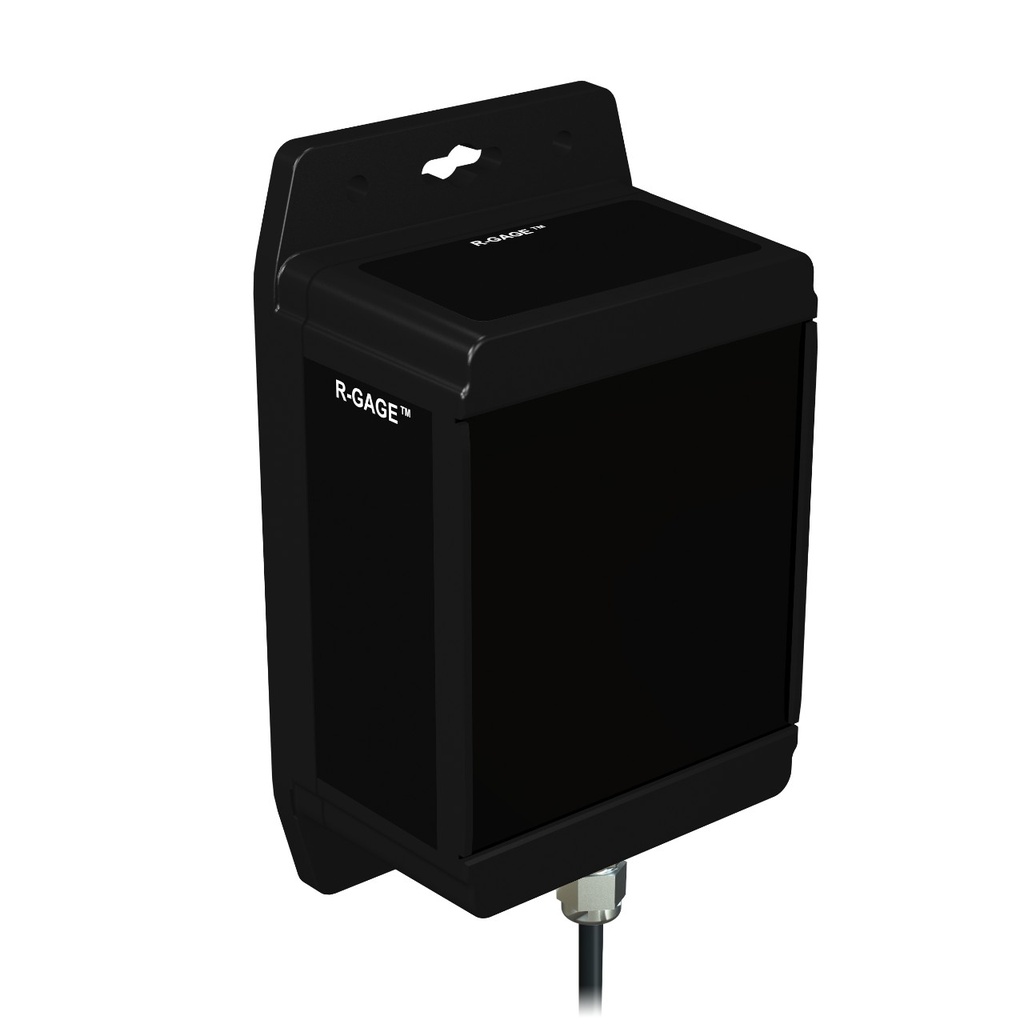

Representative photo. Please check item description for details.

R-GAGE Series Radar Sensor (Q120RA-EU-AF2)

https://www.branom.com/web/image/product.template/11103/image_1920?unique=c26756c
(0 review)

Features:

  • R-GAGE Series Radar Sensor
  • Bipolar Outputs
  • Range 2.0 to 40 Meters
  • Response Speed 40ms
  • 2 m Cable
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 65 °C
  • Power Supply: 12-30 VDC
  • Delay at Power-Up: 2000 ms
  • Ingress Protection: IP67
  • Sensing Beam: Radar
  • Housing Style: Rectangular
  • Max Sensing Distance: 40000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: ABS/Polycarbonate
  • RS-422: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Number of Pins: 5
  • Adjustments: Dip Switch
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Min Response Time: 15 ms
  • Max Discrete (Switched) Output (mA): 150
  • Min Sensing Distance: 2000 mm
  • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
  • Output Protection: Protected against short circuit
  • Profibus: No
  • Operating Frequency: 24 GHz
  • Connection Type: Flying Leads
  • Cord/Cable Length: 2 m
  • Feature: Common Ethernet Protocol: No
  • Radar Beam Pattern (H x V °): 24 x 50
  • Indicator Type: LED
