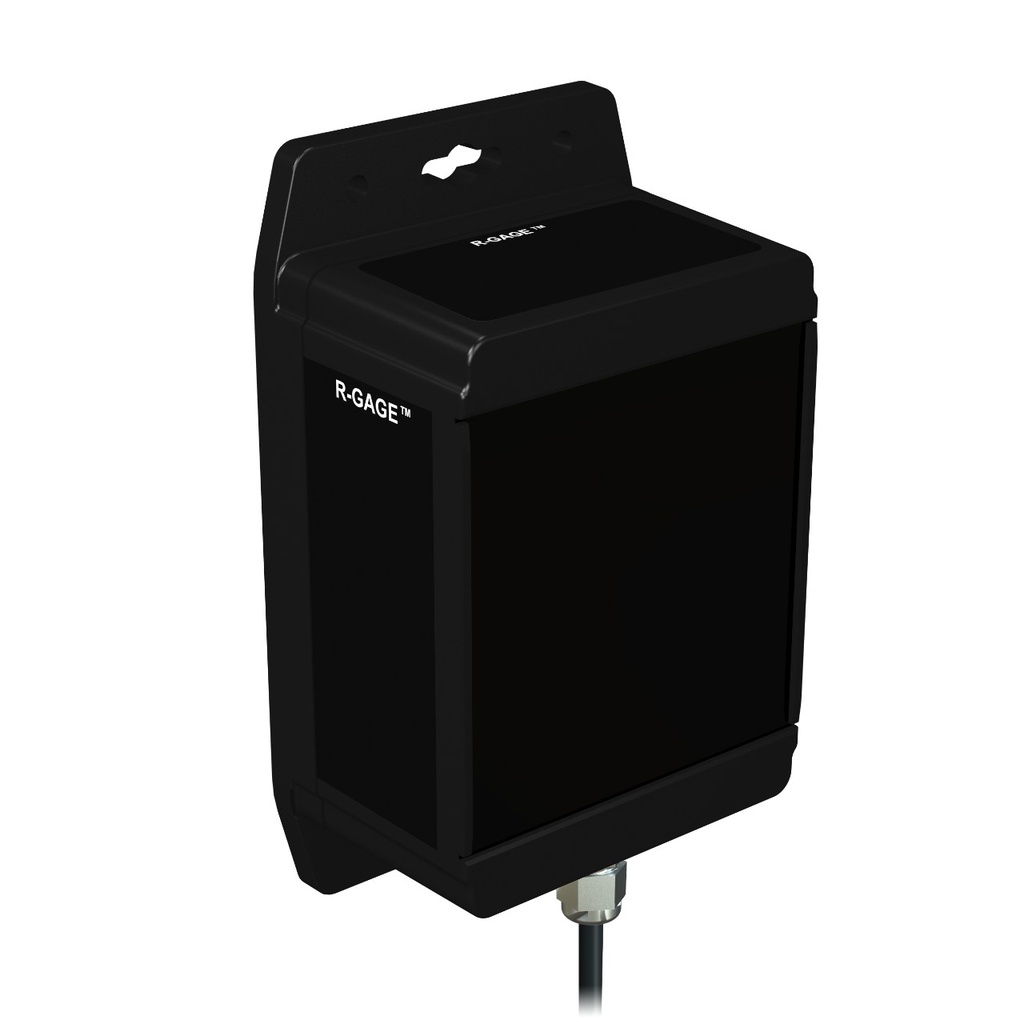

Representative photo. Please check item description for details.

R-GAGE Series Radar Sensor (Q120RA-US-AF2)

https://www.branom.com/web/image/product.template/11102/image_1920?unique=c26756c
(0 review)

Features:

  • R-GAGE Series Radar Sensor
  • Bipolar Outputs
  • Range 3.5 to 40 Meters
  • Response Speed 40ms
  • 2 Meter Cable
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 65 °C
  • Power Supply: 12-30 VDC
  • Delay at Power-Up: 2000 ms
  • Ingress Protection: IP67
  • Sensing Beam: Radar
  • Housing Style: Rectangular
  • Max Sensing Distance: 40000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: ABS/Polycarbonate
  • RS-422: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Number of Pins: 5
  • Adjustments: Dip Switch
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Min Response Time: 15 ms
  • Max Discrete (Switched) Output (mA): 150
  • Min Sensing Distance: 3500 mm
  • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
  • Output Protection: Protected against short circuit
  • Profibus: No
  • Operating Frequency: 24 GHz
  • Connection Type: Flying Leads
  • Cord/Cable Length: 2 m
  • Feature: Common Ethernet Protocol: No
  • Radar Beam Pattern (H x V °): 24 x 50
  • Indicator Type: LED

$ 3,126.00 3126.0 USD $ 3,126.00

$ 3,126.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • R-GAGE Series Radar Sensor
    • Bipolar Outputs
    • Range 3.5 to 40 Meters
    • Response Speed 40ms
    • 2 Meter Cable
    • Min Operating Temperature: -40 °C
    • Max Operating Temperature: 65 °C
    • Power Supply: 12-30 VDC
    • Delay at Power-Up: 2000 ms
    • Ingress Protection: IP67
    • Sensing Beam: Radar
    • Housing Style: Rectangular
    • Max Sensing Distance: 40000 mm
    • Sensing Mode (Detailed): Time of Flight
    • Sensing Mode (General): Proximity
    • Device Type: Sensor
    • Housing Material_: ABS/Polycarbonate
    • RS-422: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: No
    • Number of Pins: 5
    • Adjustments: Dip Switch
    • Feature: Timing (Hold/Delay): No
    • Input/Output: Discrete
    • Min Response Time: 15 ms
    • Max Discrete (Switched) Output (mA): 150
    • Min Sensing Distance: 3500 mm
    • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
    • Output Protection: Protected against short circuit
    • Profibus: No
    • Operating Frequency: 24 GHz
    • Connection Type: Flying Leads
    • Cord/Cable Length: 2 m
    • Feature: Common Ethernet Protocol: No
    • Radar Beam Pattern (H x V °): 24 x 50
    • Indicator Type: LED
