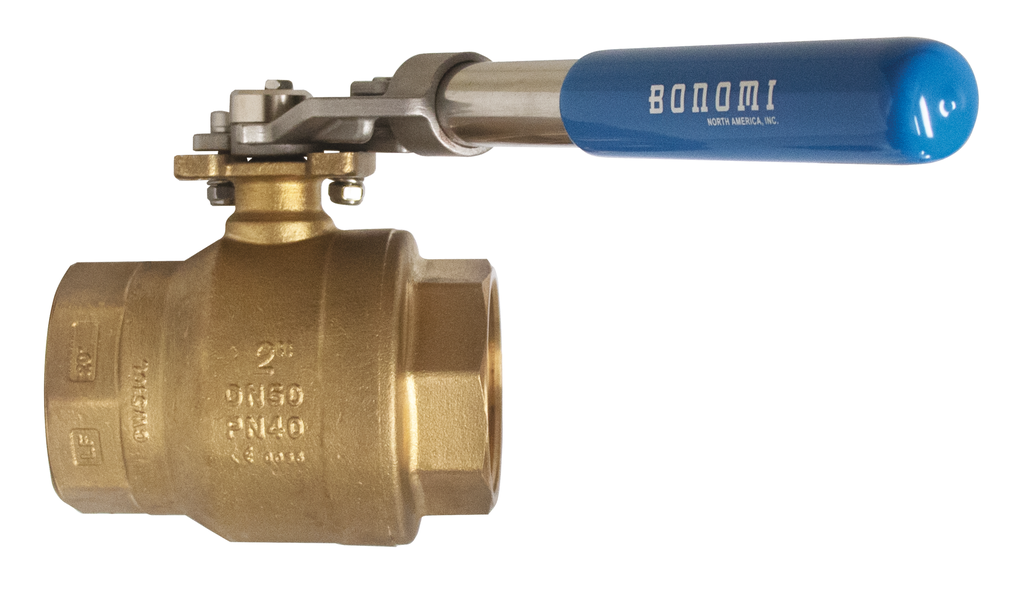

250NLF SRL Lead Free Series, Full Port Brass Ball Valve FNPT Threaded w/ ISO 5211 pad for Actuators
250NLF SRL Lead Free Series Deadman spring return lever, lead free brass, 2-way 2-piece, full port, FNPT threaded.
Features
Pressure rating 600 WOG-150 WSP.
Temperature range -4°F to +366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, SLT. coated LF brass ball and double O-ring stem packing.
PTFE seats with O-ring backing for low operating torque.
100% electronically tested in the open and closed position at 80 psi.
The Buna O-ring is fitted to the stem of the valve as the best possible protection against potential gas leakage under extreme duty, or low pressure applications. A secondary P.T.F.E stem seal will also assure that the valve is suitable for use up to 366°F.
250NLF SRL Lead Free Series Deadman spring return lever, lead free brass, 2-way 2-piece, full port, FNPT threaded.
Features
Pressure rating 600 WOG-150 WSP.
Temperature range -4°F to +366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, SLT. coated LF brass ball and double O-ring stem packing.
PTFE seats with O-ring backing for low operating torque.
100% electronically tested in the open and closed position at 80 psi.
The Buna O-ring is fitted to the stem of the valve as the best possible protection against potential gas leakage under extreme duty, or low pressure applications. A secondary P.T.F.E stem seal will also assure that the valve is suitable for use up to 366°F.

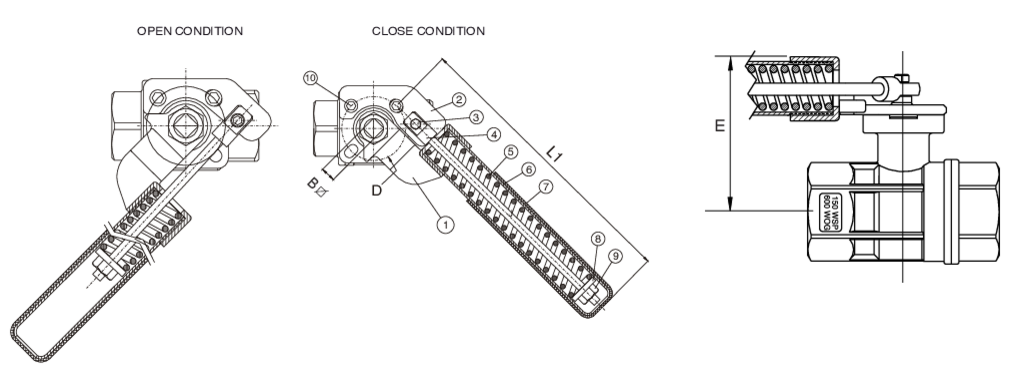

Specifications
| Valve Size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
