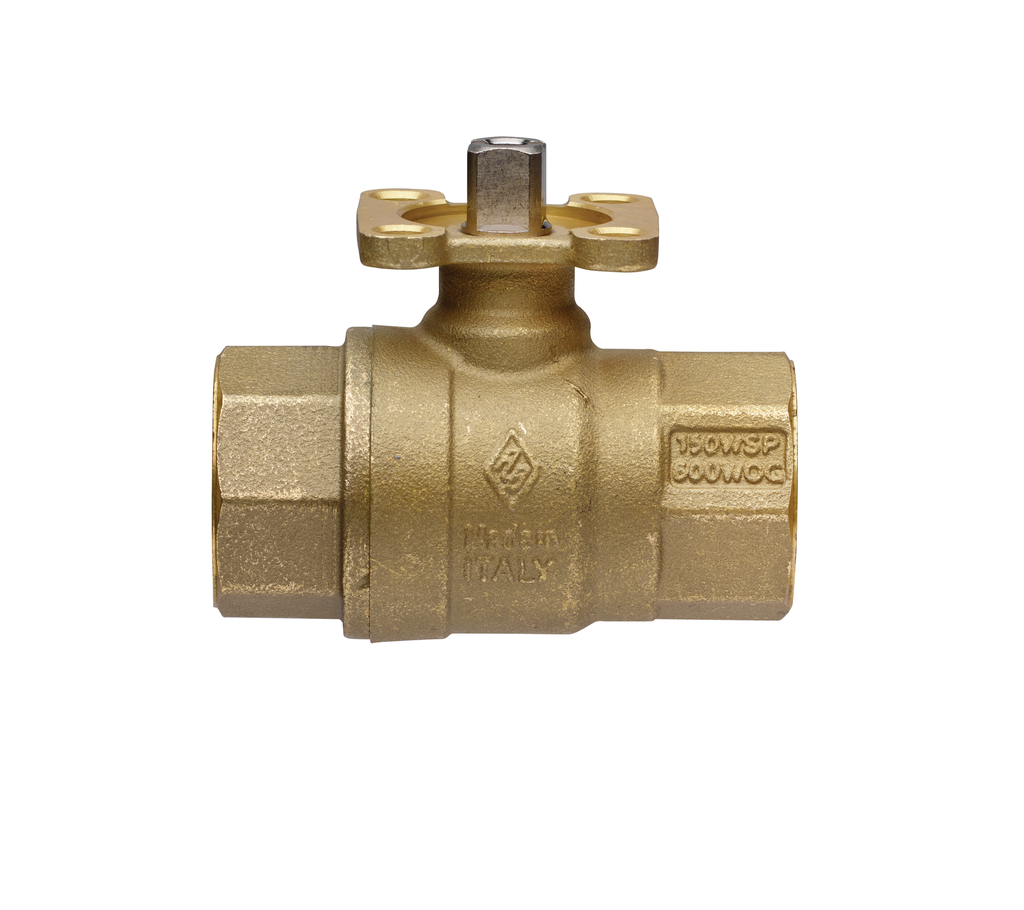

250NLF / 253NLF, Lead Free Series, Full Port, Brass Ball Valve FNPT Threaded w/ ISO 5211 Pad for Actuators
250N LF Lead Free Series brass ball valve, FNPT threaded, with ISO 5211 pad for actuator, full port.
Features
Pressure rating 600 WOG-150 WSP.
Temperature range -4°F to 366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, SLT. coated LF brass ball and and double O-ring stem packing.
PTFE seats with O-ring backing for low operating torque.
100% electronically tested in the open and closed position at 80 psi.
Valve to be used in fully open or fully closed position.
Model Details
250N LF: size 1/4” to 4”.
253N LF: WITH STAINLESS STEEL BALL AND STEM - size 1/4” to 4”.
250N LF Lead Free Series brass ball valve, FNPT threaded, with ISO 5211 pad for actuator, full port.
Features
Pressure rating 600 WOG-150 WSP.
Temperature range -4°F to 366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, SLT. coated LF brass ball and and double O-ring stem packing.
PTFE seats with O-ring backing for low operating torque.
100% electronically tested in the open and closed position at 80 psi.
Valve to be used in fully open or fully closed position.
Model Details
250N LF: size 1/4” to 4”.
253N LF: WITH STAINLESS STEEL BALL AND STEM - size 1/4” to 4”.
Specifications
| Model | [250N LF] Standards, [253N LF] With Stainless Steel Ball/Stem |
| Valve Size | 1/4", 3/8", 1/2", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 3/4" , 1" , 1-1/4" , 1-1/2" , 2" , 2-1/2" , 3" , 4" |
