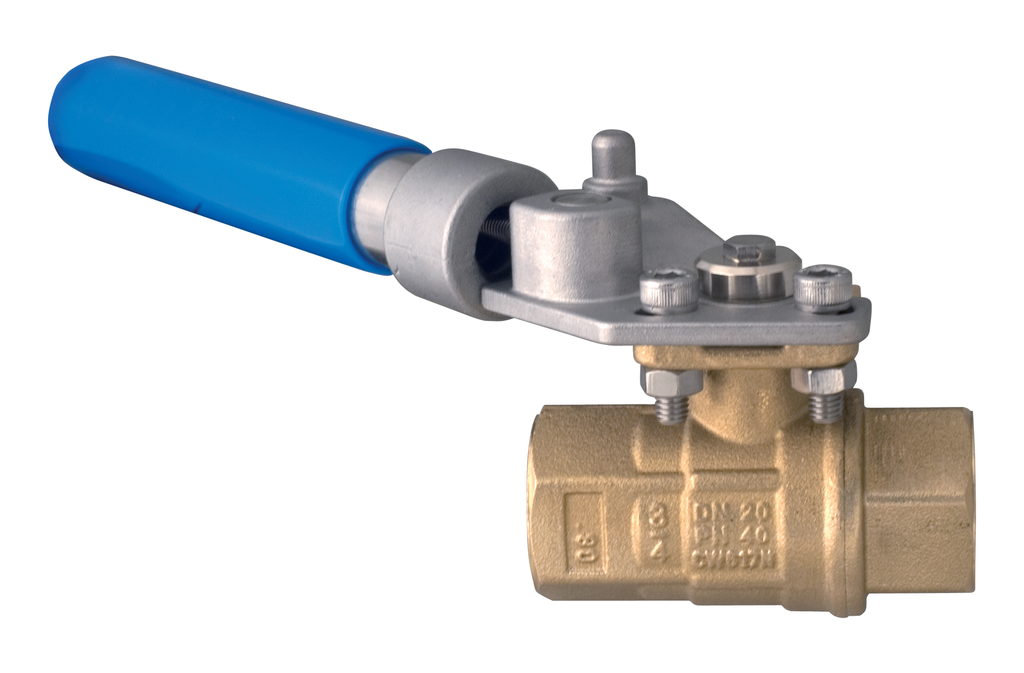

250N SRL Full-Sfer Series Full Port Brass Ball Valve FNPT Threaded w/ Spring Return Handle
250N SRL Full-Sfer Series Deadman Spring Return ball valve, full port, FNPT threaded.
Features
Pressure rating 600 WOG-150 WSP.
Temperature range -4°F to +366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, chrome plated brass ball ball and and double O-ring stem packing.
PTFE seats with O-ring backing for low operating torque.
Adjustable spring return lever.
100% electronically tested in the open and closed position at 80 psi.
Not to be used for drinking water.
The Buna O-ring is fitted to the stem of the valve as the best possible protection against potential gas leakage underextreme duty or low pressure applications.
A secondary PTFE stem seal will also assure that the valve is suitable for use up to 366°F.
250N SRL Full-Sfer Series Deadman Spring Return ball valve, full port, FNPT threaded.
Features
Pressure rating 600 WOG-150 WSP.
Temperature range -4°F to +366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, chrome plated brass ball ball and and double O-ring stem packing.
PTFE seats with O-ring backing for low operating torque.
Adjustable spring return lever.
100% electronically tested in the open and closed position at 80 psi.
Not to be used for drinking water.
The Buna O-ring is fitted to the stem of the valve as the best possible protection against potential gas leakage underextreme duty or low pressure applications.
A secondary PTFE stem seal will also assure that the valve is suitable for use up to 366°F.
Specifications
| Valve Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
