Representative photo. Please check item description for details.

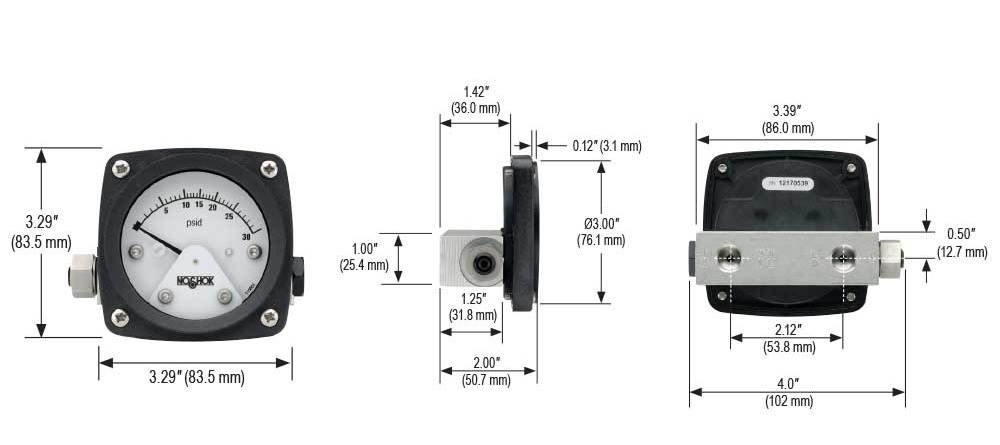

1000 Series Differential Gauge, 0 psid to 10 psid, Silicone Filled
- Simple, rugged, compact differential pressure gauge
- Ranges from 0 psid to 5 psid through 0 psid to 110 psid
- Engineered plastic gauge case
- Clear anodized Aluminum and 316 Stainless Steel wetted parts
Applications:
- Back flow testing
- Heat exchangers
- Filter monitoring
- Flow indication
- Level indication
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Simple, rugged, compact differential pressure gauge
- Ranges from 0 psid to 5 psid through 0 psid to 110 psid
- Engineered plastic gauge case
- Clear anodized Aluminum and 316 Stainless Steel wetted parts
Applications:
- Back flow testing
- Heat exchangers
- Filter monitoring
- Flow indication
- Level indication
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Gauge: Brand | Noshok |
| Gauge: Product Unit of Measure | psid |
| Gauge: Process Connection Location | Back Mount |
| Gauge: Case Material | Plastic |
| Gauge: Window | Acrylic (PMMA) |
| Gauge: Diaphragm Material | Rubber |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm) |
| Gauge: Process Connection Size | 1/4 NPT |
| Gauge: Accuracy | ±3% |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Type | Differential Gauge |
