AF Style MI Thermocouple

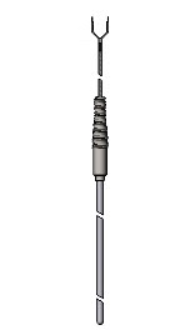

Representative photo. Please check item description for details.

AF Style MI Thermocouple

https://www.branom.com/web/image/product.template/541872/image_1920?unique=c26756c
(0 review)

Configuration Details
MI Sensor Style AF Style
Sheath Outside Diameter [in] J-.250 Inch
Junction Type U - Single Ungrounded
Sheath Material Q - Alloy 600
Calibraton Type Type K
Limits of Error Standard Limits
Mounting Options None
Bend Option Straight Length
Sheath Length [in] 13.000
Lead Wire Construction K - Fiberglass SS Overbraid, Stranded
Lead Wire Length [in] 120
Lead Wire Termination T - Standard Split Leads
Cold End Seal/Potting 500°F Epoxy
Transition Style AF5 - 3/8" with Spring (701), Crimped
Gauge Size 20 Gauge
Insulated Singles Length [in] 1.500
Calibrate/Cert Type No Certification Required
MI Cable Material Cert (Y/N) No
Lot Control NA - None


  • Measurement Minimum

This combination does not exist.

Contact Us

Share

Configuration Details
MI Sensor Style AF Style
Sheath Outside Diameter [in] J-.250 Inch
Junction Type U - Single Ungrounded
Sheath Material Q - Alloy 600
Calibraton Type Type K
Limits of Error Standard Limits
Mounting Options None
Bend Option Straight Length
Sheath Length [in] 13.000
Lead Wire Construction K - Fiberglass SS Overbraid, Stranded
Lead Wire Length [in] 120
Lead Wire Termination T - Standard Split Leads
Cold End Seal/Potting 500°F Epoxy
Transition Style AF5 - 3/8" with Spring (701), Crimped
Gauge Size 20 Gauge
Insulated Singles Length [in] 1.500
Calibrate/Cert Type No Certification Required
MI Cable Material Cert (Y/N) No
Lot Control NA - None

Specifications

Measurement Minimum 0
