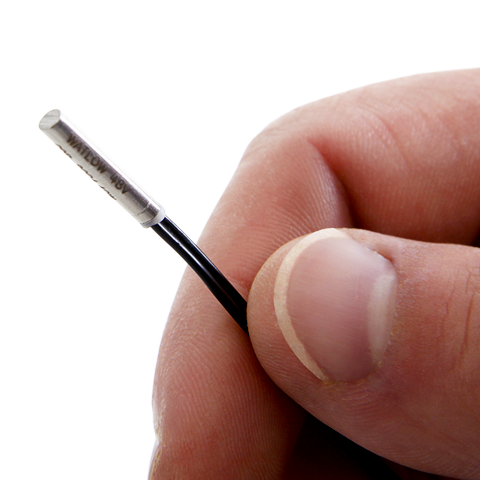

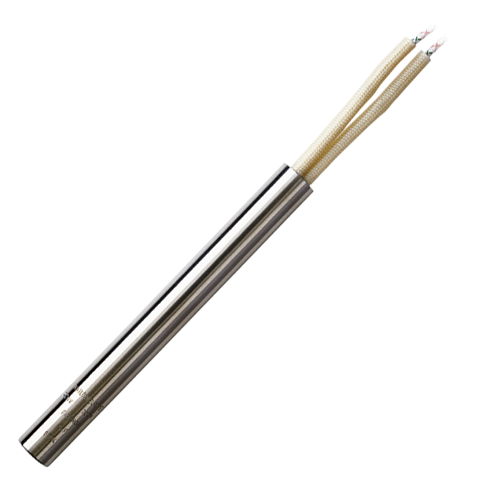

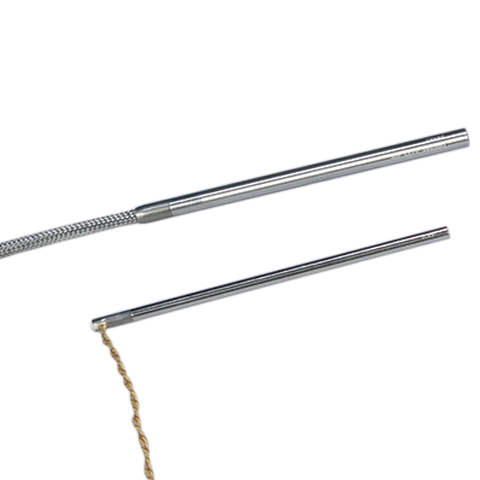

Representative photo. Please check item description for details.

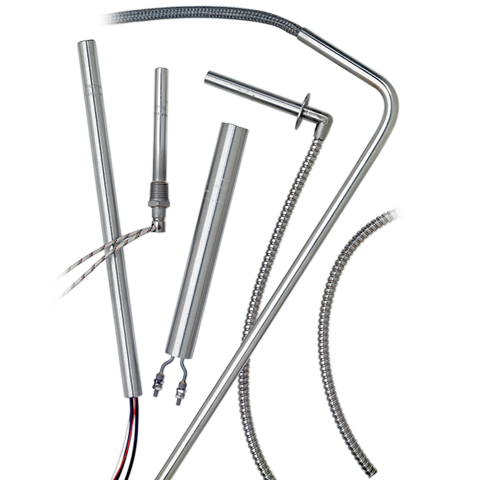

FireRod Cartridge Heater

https://www.branom.com/web/image/product.template/541458/image_1920?unique=c26756c
(0 review)

Configuration Details
Diameter [in] (B) .371" +/- .002"
Overall Length [in] (A) 3.500
Length Tolerance +/- 3/32
Voltage [V] 120
Power [W] 300
Wattage Tolerance [%] + 5%,- 10%
Terminations Straight Braid
Braid Finishing Options: Standard Crimp Ring
End Seal PTFE
Lead Type PTFE
Lead Length [in] (E) 60
Protection Length [in] (F) 58
Sheath Materials Alloy 800
Mounting Options Locating Ring
Distance From Lead End [in] (G1) 0.892
Attachment Method S = Stake
CE No
Lead End No Heat [in] 'NOM' (D) 1.500
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 141


  • Measurement Maximum
  • Measurement Minimum

This combination does not exist.
