  3. CIRC FLG STD TUB CONFIG. HEATER W/ Thermostat 30-110 Deg F
Public Pricelist (v2)
CIRC FLG STD TUB CONFIG. HEATER W/ Thermostat 30-110 Deg F

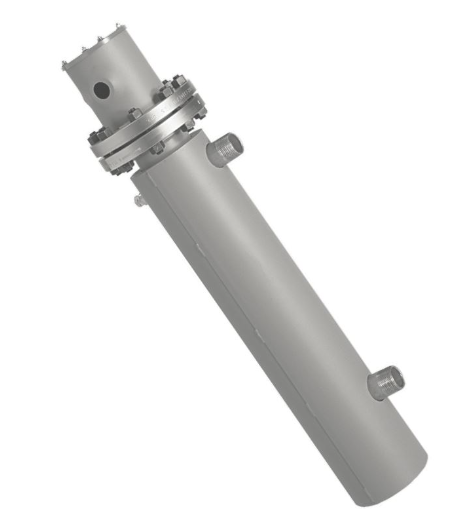

Representative photo. Please check item description for details.

CIRC FLG STD TUB CONFIG. HEATER W/ Thermostat 30-110 Deg F

https://www.branom.com/web/image/product.template/534951/image_1920?unique=c26756c
(0 review)

Circ Flange Voltage: 240
Circ Flange Wattage: 24,000
Watt Density: 59.2
B Dimension (Immersed element length): 27.0000
Number of Elements: 6 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 2
Flange Size: 5 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 4.5625
Passivate wetted parts? No
Process Sensor: Type 4 Thermostat, 30-110°F
Hi-Limit Sensor: No Hi-Limit Sensor
Celsius Dial Plate? No
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 2343-1669 CF7
