Tubular Flanged Heater
Representative photo. Please check item description for details.

Tubular Flanged Heater

https://www.branom.com/web/image/product.template/532918/image_1920?unique=c26756c
(0 review)
Flange Voltage: 480
Flange Wattage: 240,000
Watt Density: 35.9

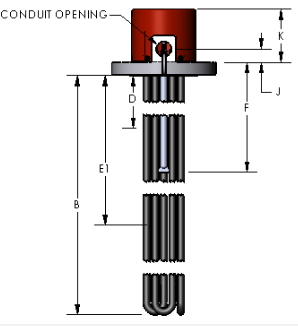

B Dimension (Immersed element length): 48.0000
Number of Elements: 54 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 9
Flange Size: 12 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 6.6875
Passivate wetted parts? No
Process Sensor: Type 2A Thermostat, 30-250°F
Hi-Limit Sensor: No Hi-Limit Sensor
Celsius Dial Plate? No
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 2328-1687  FL7

  • Measurement Maximum
  • Measurement Minimum
  • Heater Type

This combination does not exist.

Contact Us

Share

Flange Voltage: 480
Flange Wattage: 240,000
Watt Density: 35.9
B Dimension (Immersed element length): 48.0000
Number of Elements: 54 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 9
Flange Size: 12 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 6.6875
Passivate wetted parts? No
Process Sensor: Type 2A Thermostat, 30-250°F
Hi-Limit Sensor: No Hi-Limit Sensor
Celsius Dial Plate? No
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 2328-1687  FL7

Specifications

Measurement Maximum 0
Measurement Minimum 0
Heater Type Tubular Heaters
