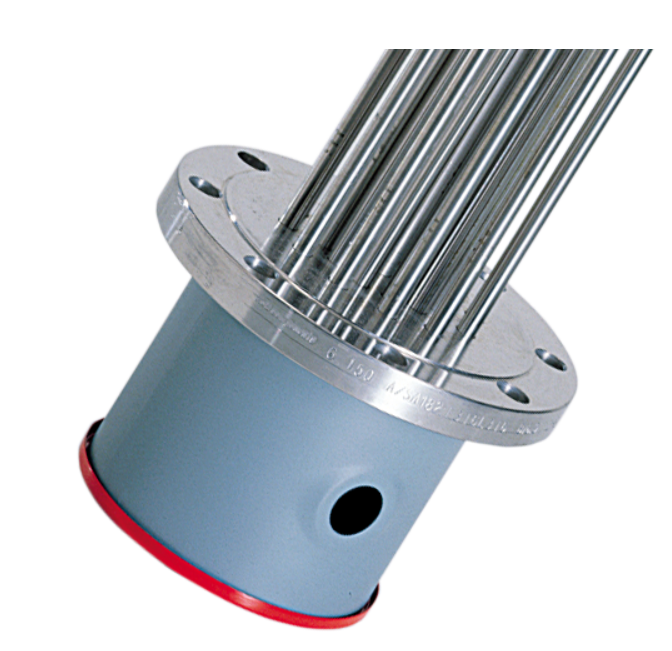

Representative photo. Please check item description for details.
CIRCULAR FLANGE TUBULAR HEATER, 240V, 3phase wye, 4" 150 lb. flange.
Circ Flange Voltage: 240 Circ Flange Wattage: 6,000 Watt Density: 16.0 B Dimension (Immersed element length): 25.5000 Number of Elements: 6 Elements Electrical Phase configuration: 3 Phase - Wye wiring Number of Circuits: 1 Flange Size: 4 Inch Flange Flange Class: 150 lb. Flange Material: 304 Stainless Steel Flange Sheath Material: 304 SS Baffles? With Baffles Baffle Orientation: U Configuration, Inlet Away from Flange Cold End Section below the Flange: 4.5625 Passivate wetted parts? No Process Sensor: No Process Sensor Hi-Limit Sensor: Type K Thermocouple Thermowell required? No Mounting Orientation: Vertical Top Number of Hilimit Sensors (1 or 2): 1 First Hi-Limit Location: 12.5625 Stand-off Terminal Enclosure? No Terminal Enclosure: Explosion/Moisture Resist. (non-certified) (standard) CE Low Volt Directive required? No Nameplate Part Number: 2282-5805
Circ Flange Voltage: 240 Circ Flange Wattage: 6,000 Watt Density: 16.0 B Dimension (Immersed element length): 25.5000 Number of Elements: 6 Elements Electrical Phase configuration: 3 Phase - Wye wiring Number of Circuits: 1 Flange Size: 4 Inch Flange Flange Class: 150 lb. Flange Material: 304 Stainless Steel Flange Sheath Material: 304 SS Baffles? With Baffles Baffle Orientation: U Configuration, Inlet Away from Flange Cold End Section below the Flange: 4.5625 Passivate wetted parts? No Process Sensor: No Process Sensor Hi-Limit Sensor: Type K Thermocouple Thermowell required? No Mounting Orientation: Vertical Top Number of Hilimit Sensors (1 or 2): 1 First Hi-Limit Location: 12.5625 Stand-off Terminal Enclosure? No Terminal Enclosure: Explosion/Moisture Resist. (non-certified) (standard) CE Low Volt Directive required? No Nameplate Part Number: 2282-5805
Specifications
| Process Connection Type | ASME 150# |
| Process Connection Location | Top |
| Measurement Minimum | 0 |
| Input Voltage | 240 VAC |
| Heater Type | Tubular Heaters |
