  3. 1/16 DIN PM PLUS PID CONTROLLER, UNIVERSAL INPUT, PROFILE RAMP/SOAK, UNIVERSAL Power, (3) SWITCHED DC, (1) RELAYS, (2) Digital I/O, Integrated Limit Controller, BLUETOOTH, PM6R4CC-BLCJPWP
Public Pricelist (v2)
1/16 DIN PM PLUS PID CONTROLLER, UNIVERSAL INPUT, PROFILE RAMP/SOAK, UNIVERSAL Power, (3) SWITCHED DC, (1) RELAYS, (2) Digital I/O, Integrated Limit Controller, BLUETOOTH, PM6R4CC-BLCJPWP

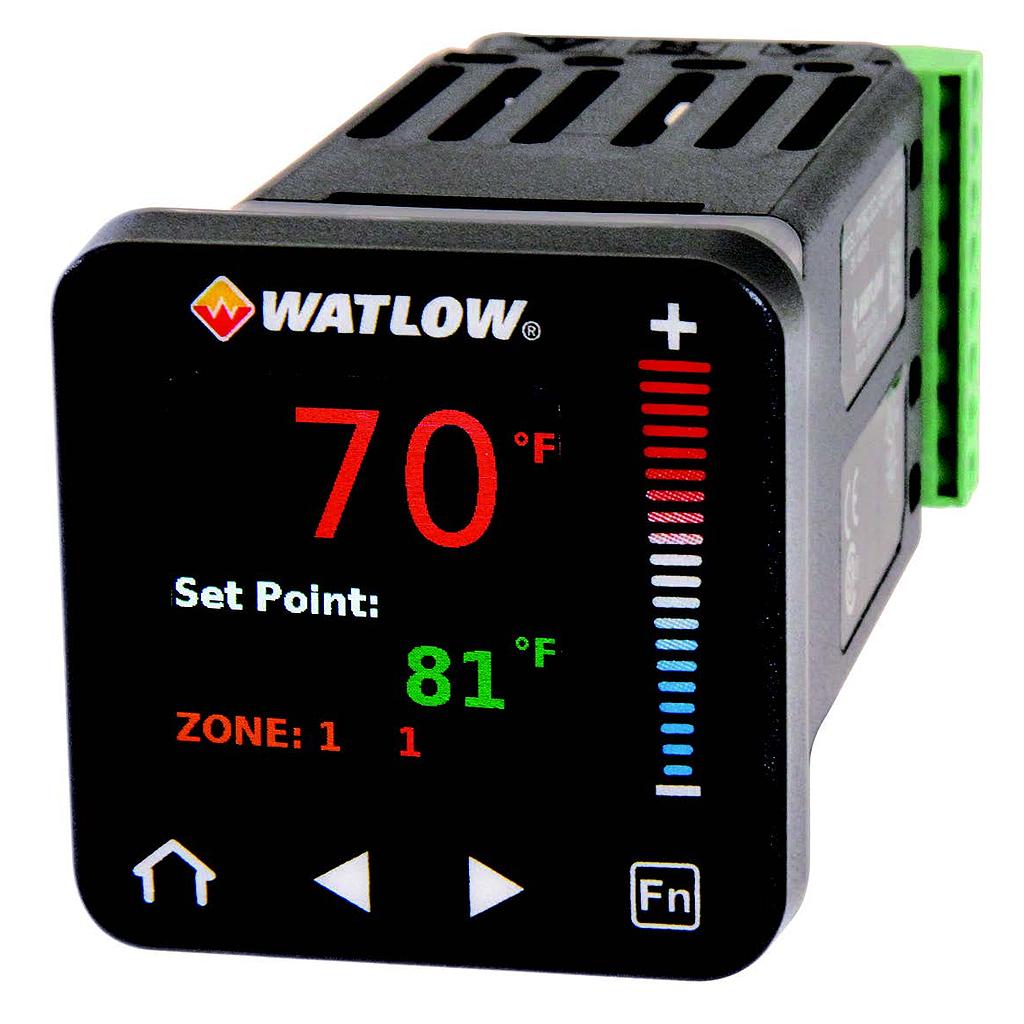

Representative photo. Please check item description for details.

1/16 DIN PM PLUS PID CONTROLLER, UNIVERSAL INPUT, PROFILE RAMP/SOAK, UNIVERSAL Power, (3) SWITCHED DC, (1) RELAYS, (2) Digital I/O, Integrated Limit Controller, BLUETOOTH, PM6R4CC-BLCJPWP

https://www.branom.com/web/image/product.template/512557/image_1920?unique=c26756c
(0 review)
Package Size 6 = 1/16th DIN Panel Plus Model
Primary Function R = PID Cont w/ Univ Input, Profile Ramp/Soak
Power Supply 4 = 20 to 28VAC or 12 to 40VDC, plus 2 digital I-O points
Output 1 and 2 CC - Out1 = Switched dc/open collector : Out2 = Switched DC
Communications B = Bluetooth
Auxiliary Control Functions L = Integrated Limit Controller with Universal Input
Output 3 and  4 CJ -  Out3 = Switched dc/open collector : Out4 =Mech Relay 5A,  SPST-NO
Model Selection P = PM PLUS standard (isolated input 1, input 2 is always isolated)
Custom Options WP = Logo Face Plate
Model Number PM6R4CC-BLCJPWP

  • Measurement Minimum
  • Input Communication Protocol
  • Output Communication Protocol
  • Input Voltage

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Package Size 6 = 1/16th DIN Panel Plus Model
Primary Function R = PID Cont w/ Univ Input, Profile Ramp/Soak
Power Supply 4 = 20 to 28VAC or 12 to 40VDC, plus 2 digital I-O points
Output 1 and 2 CC - Out1 = Switched dc/open collector : Out2 = Switched DC
Communications B = Bluetooth
Auxiliary Control Functions L = Integrated Limit Controller with Universal Input
Output 3 and  4 CJ -  Out3 = Switched dc/open collector : Out4 =Mech Relay 5A,  SPST-NO
Model Selection P = PM PLUS standard (isolated input 1, input 2 is always isolated)
Custom Options WP = Logo Face Plate
Model Number PM6R4CC-BLCJPWP

Specifications

Measurement Minimum 0
Input Communication Protocol Multiple
Output Communication Protocol Multiple
Input Voltage 100-240 VAC
