Watlow Circular Plug Standard Tubular Heater

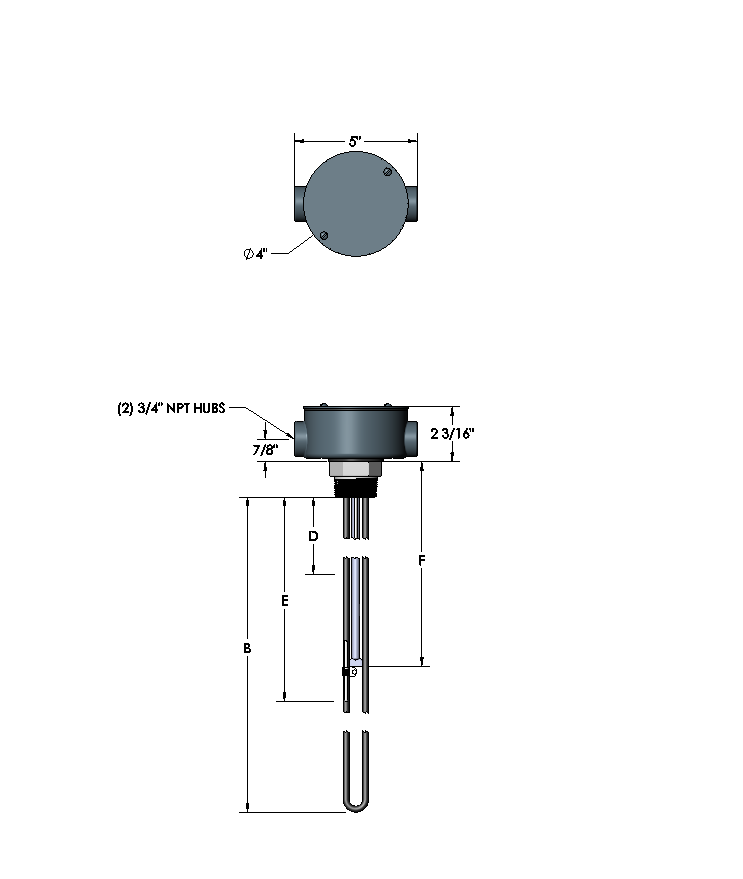

Representative photo. Please check item description for details.

Watlow Circular Plug Standard Tubular Heater

https://www.branom.com/web/image/product.template/487810/image_1920?unique=c26756c
(0 review)
Circ Plug Size: 1 1/4 Inch Plug - 1 Element
Circ Plug Voltage: 480
Circ Plug Wattage: 6,000
Watt Density: 45.1
B Dimension (Immersed element length): 32.5000
Electrical Phase configuration: 3 Phase - Delta wiring
Plug Material: 304 Stainless Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 3.5625
Element Passivation? No
Element End Seal: Epoxy, 130 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Mounting Orientation: Horizontal
Pilot Light: (not avail. with CSA, CE or UL) No
Terminal Enclosure: Moisture Resistant (standard)
Nameplate Part Number: 2279-4983  CS2

  • Measurement Minimum
  • Input Voltage
  • Heater Type

This combination does not exist.

Contact Us

Share

Circ Plug Size: 1 1/4 Inch Plug - 1 Element
Circ Plug Voltage: 480
Circ Plug Wattage: 6,000
Watt Density: 45.1
B Dimension (Immersed element length): 32.5000
Electrical Phase configuration: 3 Phase - Delta wiring
Plug Material: 304 Stainless Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 3.5625
Element Passivation? No
Element End Seal: Epoxy, 130 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Mounting Orientation: Horizontal
Pilot Light: (not avail. with CSA, CE or UL) No
Terminal Enclosure: Moisture Resistant (standard)
Nameplate Part Number: 2279-4983  CS2

Specifications

Measurement Minimum 0
Input Voltage 480 VAC
Heater Type Tubular Heaters
