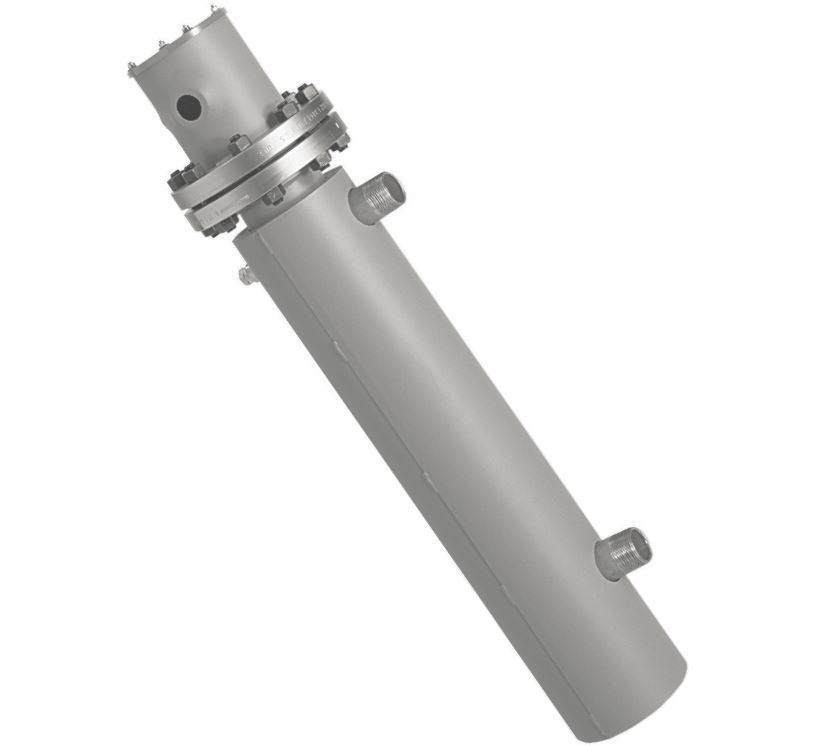

Watlow 6" 150Lb Flanged Circulation Heater, 480V/45Kw, 25.375" Element Insertion Length, 15 Elements
Circ Flange Voltage: 480
Circ Flange Wattage: 45,000
Watt Density: 47.7
B Dimension (Immersed element length): 25.3750
Number of Elements: 15 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 5
Flange Size: 6 Inch Flange
Flange Class: 150 lb.
Flange Material: 316 Stainless Steel Flange
Sheath Material: 316 SS
Baffles? No Baffles
Cold End Section below the Flange: 4.5000
Passivate wetted parts? Yes
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 2262-5556
Circ Flange Voltage: 480
Circ Flange Wattage: 45,000
Watt Density: 47.7
B Dimension (Immersed element length): 25.3750
Number of Elements: 15 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 5
Flange Size: 6 Inch Flange
Flange Class: 150 lb.
Flange Material: 316 Stainless Steel Flange
Sheath Material: 316 SS
Baffles? No Baffles
Cold End Section below the Flange: 4.5000
Passivate wetted parts? Yes
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 2262-5556
Specifications
| Process Connection Type | ASME 150# |
| Measurement Minimum | 0 |
