Glass Fiber (BTETA1.59S)
Representative photo. Please check item description for details.

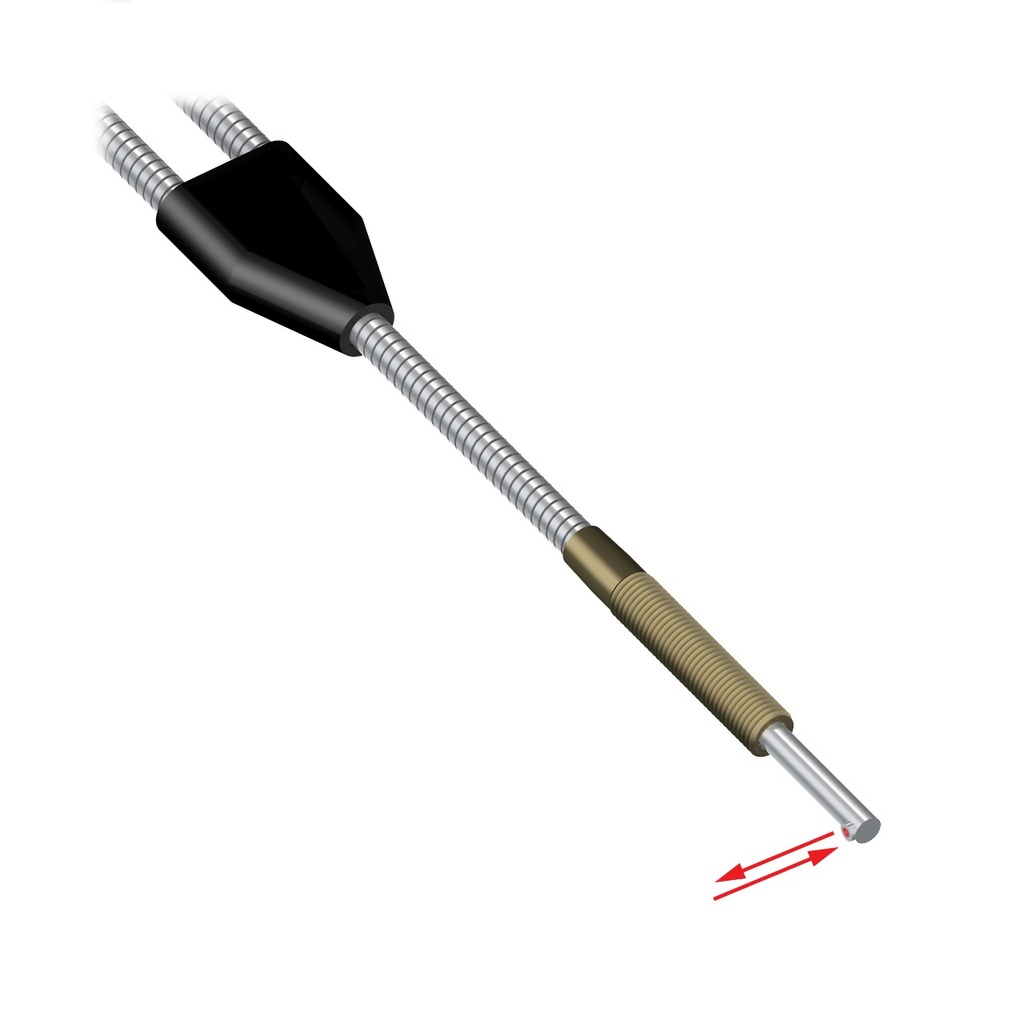

Glass Fiber (BTETA1.59S)

https://www.branom.com/web/image/product.template/202547/image_1920?unique=c26756c
(0 review)

Features:

    Glass Fiber; Diffuse Mode 2.29 mm dia. Bundle; Stainless Steel Sheathing; 2.74 m long; 5/16x24 Thread with 25.4 mm long Probe, Side Exit sensing
    • Max Operating Temperature: 249 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Diffuse
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Thread
  • Tariff Fiber Meters: 4775.56 fbm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 5.3 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Sideview
  • Termination: Terminated
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 2.3 mm
  • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
  • Feature: Flex Relief: No
  • Termination Type: Glass Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: #5/16-24 thread
  • Fiber Length: 2.743 m
  • Fiber Optic Type: Glass
  • Sensing End Segment 2: Probe
  • Sensing End Segment 3: Sideview
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 25 mm
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Minimum Bend Radius: 25 mm

$ 325.00 325.0 USD $ 325.00

$ 325.00

Not Available For Sale
