Watlow Firerod Heater, 3/8", 220V, 500W

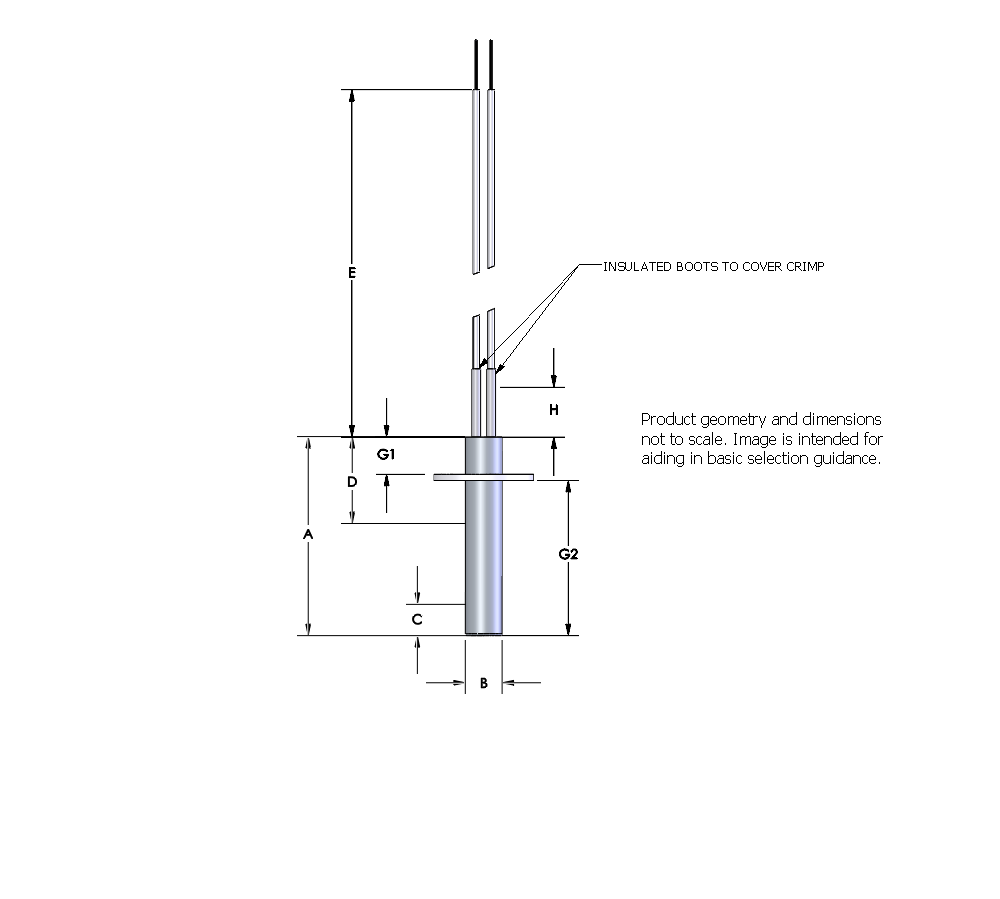

Representative photo. Please check item description for details.

Watlow Firerod Heater, 3/8", 220V, 500W

https://www.branom.com/web/image/product.template/195479/image_1920?unique=c26756c
(0 review)

Diameter [in] (B) .371" +/- .002"
Overall Length [in] (A) 7.000
Length Tolerance + /- 2%
Voltage [V] 220
Power [W] 500
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type High Temp (MGT)
Lead Length [in] (E) 24
Thermocouple B = On Sheath
T/C Type K = Chromel-P / Alumel
T/C Length [in] 24
Sheath Materials Incoloy 800
Mounting Options Small Flange (FS)
Distance From Disk End [in] (G2) 6.250
Attachment Method S = Stake
CE No
Lead End No Heat [in] 'NOM' (D) 1.000
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 78


  • Measurement Maximum
  • Measurement Minimum
  • Heater Type

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Diameter [in] (B) .371" +/- .002"
Overall Length [in] (A) 7.000
Length Tolerance + /- 2%
Voltage [V] 220
Power [W] 500
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type High Temp (MGT)
Lead Length [in] (E) 24
Thermocouple B = On Sheath
T/C Type K = Chromel-P / Alumel
T/C Length [in] 24
Sheath Materials Incoloy 800
Mounting Options Small Flange (FS)
Distance From Disk End [in] (G2) 6.250
Attachment Method S = Stake
CE No
Lead End No Heat [in] 'NOM' (D) 1.000
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 78

Specifications

Measurement Maximum 0
Measurement Minimum 0
Heater Type Cartridge Insertion Heaters
