  3. Watlow Firerod Heater, 3/4" diameter, 20" Length, 460V 3PH Delta, 3KW, 2 1/2" Pins, no Leads, Lead End No Heat: 1"(Reference), Disc End No Heat: 1/4"(Reference), Alloy 800 Sheath
Public Pricelist (v2)
Watlow Firerod Heater, 3/4" diameter, 20" Length, 460V 3PH Delta, 3KW, 2 1/2" Pins, no Leads, Lead End No Heat: 1"(Reference), Disc End No Heat: 1/4"(Reference), Alloy 800 Sheath

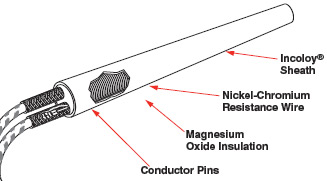

Representative photo. Please check item description for details.

Watlow Firerod Heater, 3/4" diameter, 20" Length, 460V 3PH Delta, 3KW, 2 1/2" Pins, no Leads, Lead End No Heat: 1"(Reference), Disc End No Heat: 1/4"(Reference), Alloy 800 Sheath

https://www.branom.com/web/image/product.template/194440/image_1920?unique=c26756c
(0 review)

Diameter [in] (B) .746" +/- .002"
Overall Length [in] (A) 20.000
Length Tolerance + /- 2%
Voltage [V] 460
Power [W] 3,000
Wattage Tolerance [%] + 5%,- 10%
Terminations Pins Only
End Seal No Seal
Lead Type Pins Only
Sheath Materials Incoloy 800
CE No
Pin Options (H) Special Pin Length
Pin Length [in] (H) 2.500
Lead End No Heat [in] 'NOM' (D) 1.000
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 69


  • Measurement Maximum
  • Measurement Minimum
  • Heater Type

This combination does not exist.

Contact Us

Share

Diameter [in] (B) .746" +/- .002"
Overall Length [in] (A) 20.000
Length Tolerance + /- 2%
Voltage [V] 460
Power [W] 3,000
Wattage Tolerance [%] + 5%,- 10%
Terminations Pins Only
End Seal No Seal
Lead Type Pins Only
Sheath Materials Incoloy 800
CE No
Pin Options (H) Special Pin Length
Pin Length [in] (H) 2.500
Lead End No Heat [in] 'NOM' (D) 1.000
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 69

Specifications

Measurement Maximum 0
Measurement Minimum 0
Heater Type Cartridge Insertion Heaters
