  3. Watlow RT Style Rtd, .25" Diameter, 16" Insertion Length, Cast Aluminum Weatherhead w/Terminal Block
Public Pricelist (v2)

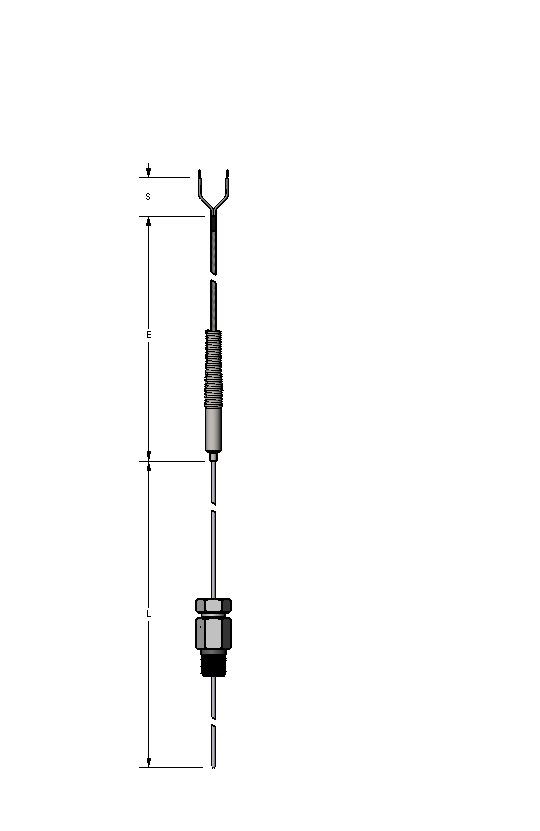

Watlow RT Style Rtd, .25" Diameter, 16" Insertion Length, Cast Aluminum Weatherhead w/Terminal Block
Representative photo. Please check item description for details.

Watlow RT Style Rtd, .25" Diameter, 16" Insertion Length, Cast Aluminum Weatherhead w/Terminal Block

https://www.branom.com/web/image/product.template/193551/image_1920?unique=c26756c
(0 review)

RTD Sensor Style RT Style 1 RTD with Nipple-Union-Nipple
Outside Diameter [in] J - .250 Inch
Sheath Type K = 316/316L SS Mineral Insulated
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Sensor Style No Thermowell - Sensor Only
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style A - Terminal Block/Strip
Nipple/Union Material A - Black Steel
"N" Dimension [in] 6.0
Spring Loading Yes
Sheath Length [in] (L) 16.000
Sheath Tolerance [in] ± 0.125
Tag Style 1 - 300 Series SST
Calibrate Sensor No


  • Measurement Maximum
  • Measurement Minimum

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

RTD Sensor Style RT Style 1 RTD with Nipple-Union-Nipple
Outside Diameter [in] J - .250 Inch
Sheath Type K = 316/316L SS Mineral Insulated
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Sensor Style No Thermowell - Sensor Only
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style A - Terminal Block/Strip
Nipple/Union Material A - Black Steel
"N" Dimension [in] 6.0
Spring Loading Yes
Sheath Length [in] (L) 16.000
Sheath Tolerance [in] ± 0.125
Tag Style 1 - 300 Series SST
Calibrate Sensor No

Specifications

Measurement Maximum 0
Measurement Minimum 0
