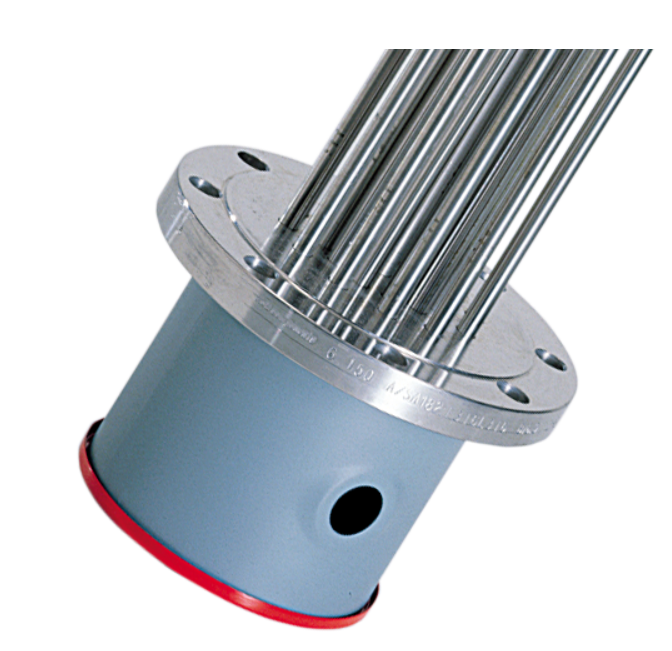

Watlow Circular Flange Tubular Heater - Alloy 800 Sheath Material
Circ Flange Voltage: 480
Circ Flange Wattage: 35,000
Watt Density: 14.9
B Dimension (Immersed element length): 39.3125
Number of Elements: 24 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 2
Flange Size: 8 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 6.8125
Sheath Passivation? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type K Thermocouple
Thermowell required? Yes
Mounting Orientation: Vertical Top
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 7.8125
Stand-off Terminal Enclosure? No
Terminal Enclosure: Moisture Resistant (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2217-1882 CF7
Circ Flange Voltage: 480
Circ Flange Wattage: 35,000
Watt Density: 14.9
B Dimension (Immersed element length): 39.3125
Number of Elements: 24 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 2
Flange Size: 8 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 6.8125
Sheath Passivation? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type K Thermocouple
Thermowell required? Yes
Mounting Orientation: Vertical Top
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 7.8125
Stand-off Terminal Enclosure? No
Terminal Enclosure: Moisture Resistant (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2217-1882 CF7
Specifications
| Process Connection Type | ASME 150# |
| Process Connection Location | Top |
| Measurement Minimum | 0 |
| Input Voltage | 480 VAC |
| Heater Type | Tubular Heaters |
