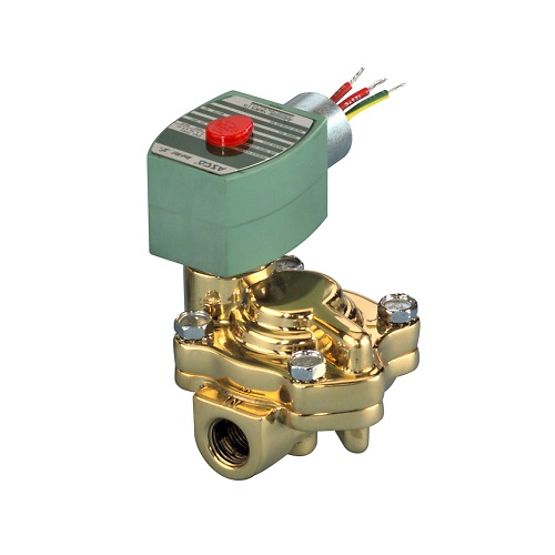

221 Series Brass, 2-Way, NO, Slow Closing Solenoid Valve
The ASCO Series 221, also known as 8221, with its unique slow-closing
design, provides higher flow while increasing throughput in commercial
applications. It reduces inventory by accommodating both hot and
cold-water service, and is designed for quick, easy maintenance. Apply
the 221 Series with confidence in high and low-temperature applications
found in laundries, molding, sterilizers and autoclaves.
Features
- A specially designed snubber offers slower disc closing speed to protect systems against water hammer damage.
- Pressure spike due to water hammer is reduced to a point eliminating the need for suppressors or other controls in most water systems
- Hot water service to 150 psi (10 Bar) differential @ 210°F (100°C)
- Pilot-operated, normally open, or normally closed models are available with a full range of pipe sizes up to 2 1/2.
- Broad range of standard AC and DC voltages available
The ASCO Series 221, also known as 8221, with its unique slow-closing
design, provides higher flow while increasing throughput in commercial
applications. It reduces inventory by accommodating both hot and
cold-water service, and is designed for quick, easy maintenance. Apply
the 221 Series with confidence in high and low-temperature applications
found in laundries, molding, sterilizers and autoclaves.
Features
- A specially designed snubber offers slower disc closing speed to protect systems against water hammer damage.
- Pressure spike due to water hammer is reduced to a point eliminating the need for suppressors or other controls in most water systems
- Hot water service to 150 psi (10 Bar) differential @ 210°F (100°C)
- Pilot-operated, normally open, or normally closed models are available with a full range of pipe sizes up to 2 1/2.
- Broad range of standard AC and DC voltages available
Specifications
| 8221 Series Brass, NO, Slow Closing Sol Valve | |
|---|---|
| Product Specifications | [G021] 3/8" Pipe | 9/16" Orifice | 3 Cv Flow, [G023] 1/2" Pipe | 9/16" Orifice | 3.5 Cv Flow, [G025] 3/4" Pipe | 3/4" Orifice | 5.5 Cv Flow, [G027] 1" Pipe | 1" Orifice | 11.5 Cv Flow, [G029] 1-1/4" Pipe | 1-1/8" Orifice | 13 Cv Flow, [G031] 1-1/2" Pipe | 1-1/4" Orifice | 24 Cv Flow, [G033] 2" Pipe | 1-3/4" Orifice | 36 Cv Flow, [G035] 2-1/2" Pipe | 1-3/4" Orifice | 38 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof, [J] Junction Box, [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, [HT] Class H - High Temperature, [KF] Class F - High Temperature - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Hot Water Construction | Without, [HW] Hot Water Construction (G021, G023, G025), [HW] Hot Water Construction (G027, G029, G031, G033, G035) |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Pipe Size | 3/8 in, 1/2 in, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in, 2 in, 2-1/2in |
| Valve: Actuation | Solenoid - Pilot Operated |
| Valve: Body Material | Copper Alloy |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | EPDM, PTFE |
| Valve: Enclosure Type | Redhat II - Watertight, Redhat II - Explosionproof & Watertight, Redhat - Explosionproof & Raintight |
| Valve: Media | Water |
| Valve: Orifice | 9/16in, 3/4in, 1in, 1-1/8in, 1-1/4in, 1-3/4in |
| Valve: Seal Material | EPDM, PTFE |
| Valve: Shading Coil | Copper, Silver |
| Valve: Springs | Stainless Steel |
| Valve: Function | 2-Way Normally Closed |
| Valve: Core Tube | Stainless Steel |
| Valve: Piston Material | Stainless Steel, PTFE |
