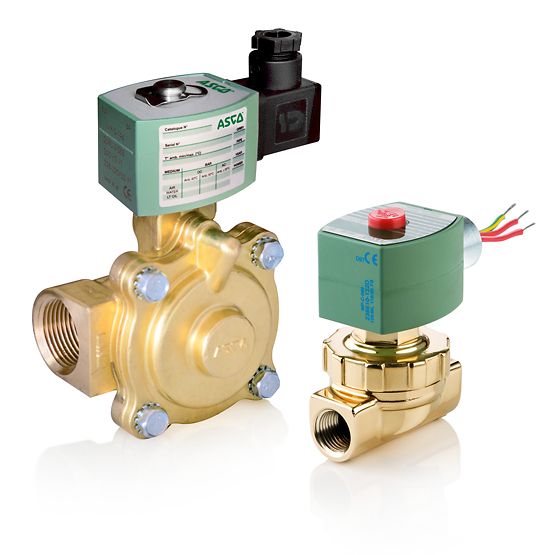

220 Series Brass NO 2-Way Hot Water/Steam Valve
The ASCO Series 220 steam and hot water valves provides up to 60% more flow than competitive offerings. That means a 3/4-inch valve flow from ASCO equals the competitors 1-inch flow. The Series 220 floating PTFE diaphragm provides positive sealing and improved durability - up to four times longer than other valves. Its threaded bonnet is easy to remove for quick inspection and serviceability reducing downtime and maintenance costs.
Features
- Longer life cycles: tested to 1 million cycles on hot water and 50 psi steam; 500,000 cycles on 125 psi steam
- Lower power operation: smaller operator reduces energy consumption on 5 psi differential pressure applications
- DC constructions have quiet designs that work with 0 psi differential pressure on hot water and 50 psi steam
- Inventory reduction: one valve can be used for both steam and hot water applications
- Quick delivery with many constructions available on ASCO Express
The ASCO Series 220 steam and hot water valves provides up to 60% more flow than competitive offerings. That means a 3/4-inch valve flow from ASCO equals the competitors 1-inch flow. The Series 220 floating PTFE diaphragm provides positive sealing and improved durability - up to four times longer than other valves. Its threaded bonnet is easy to remove for quick inspection and serviceability reducing downtime and maintenance costs.
Features
- Longer life cycles: tested to 1 million cycles on hot water and 50 psi steam; 500,000 cycles on 125 psi steam
- Lower power operation: smaller operator reduces energy consumption on 5 psi differential pressure applications
- DC constructions have quiet designs that work with 0 psi differential pressure on hot water and 50 psi steam
- Inventory reduction: one valve can be used for both steam and hot water applications
- Quick delivery with many constructions available on ASCO Express
Specifications
| 8220 Series NO Hot Water/Steam Valve | |
|---|---|
| Product Specifications | [G091] 3/8" Pipe | 9/16" Orifice | 3 Cv Flow, [G093] 1/2" Pipe | 9/16" Orifice | 4 Cv Flow, [G095] 3/4" Pipe | 3/4" Orifice | 5 Cv Flow, [G097] 1" Pipe | 1" Orifice | 13.5 Cv Flow, [G101] 1-1/2" Pipe | 1-1/4" Orifice | 22.5 Cv Flow, [G103] 2" Pipe | 1-3/4" Orifice | 43 Cv Flow, [G105] 2-1/2" Pipe | 1-3/4" Orifice | 45 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof, [J] Junction Box, [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, [HT] Class H - High Temperature, [KF] Class F - High Temperature - Screw Terminals, [KH] Class H - High Temperature - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Pipe Size | 3/8 in, 1/2 in, 3/4 in, 1 in, 1-1/2 in, 2 in, 2-1/2in |
| Valve: Actuation | Solenoid - Pilot Operated |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | EPDM, PTFE |
| Valve: Enclosure Type | Redhat II - Watertight, Redhat II - Explosionproof & Watertight, Redhat - Type I, Redhat - Explosionproof & Raintight |
| Valve: Flow Factor (Cv) | 3.0, 4.0, 5.0, 13.5, 22.5, 43.0, 45.0 |
| Valve: Media | Hot Water & Steam |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Max Temperature °F | 353 |
| Valve: Mounting Position | Vertical & Upright |
| Valve: Seal Material | EPDM, PTFE, TFE/P |
| Valve: Shading Coil | Copper, Silver |
| Valve: Springs | Stainless Steel |
| Valve: Function | 2-Way Normally Open |
| Valve: Core Tube | Stainless Steel |
| Valve: Diaphragm Material | PTFE, Stainless Steel |
| Valve: Min Temperature °F | 32 |
| Valve: Piston Material | Stainless Steel, PTFE |
