Watlow .75" Diameter Firerod Heater

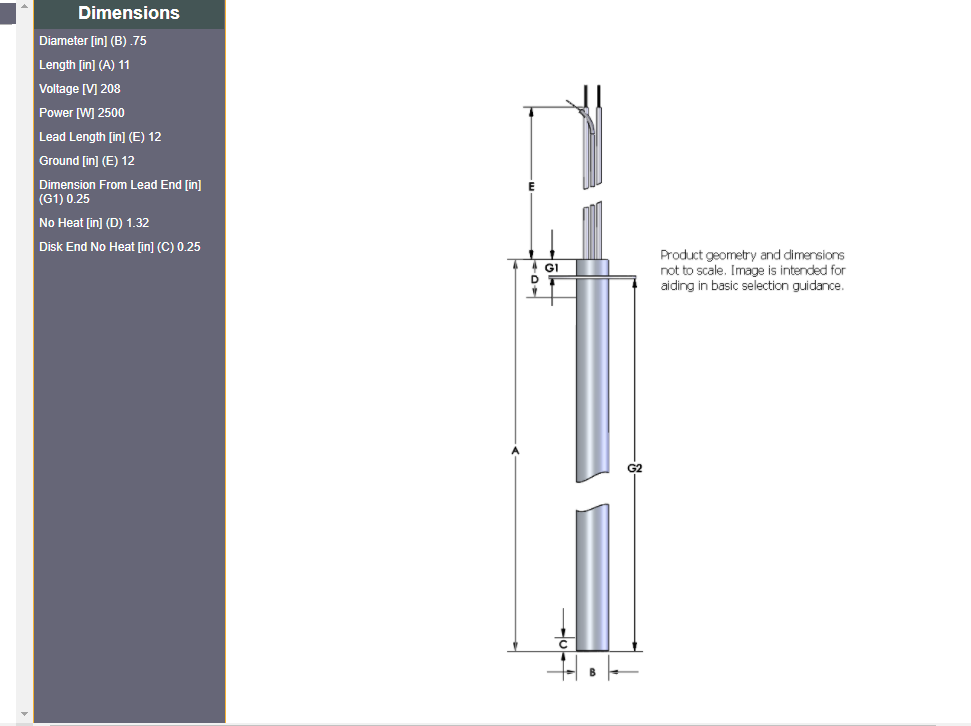

Representative photo. Please check item description for details.

Watlow .75" Diameter Firerod Heater

https://www.branom.com/web/image/product.template/189432/image_1920?unique=c26756c
(0 review)

Diameter [in] (B) .746" +/- .002"
Overall Length [in] (A) 11.000
Length Tolerance + /- 2%
Voltage [V] 208
Power [W] 2,500
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type Fiberglass (GGS)
Lead Length [in] (E) 12
Ground Lead Length [in] (E) 12
Sheath Materials Incoloy 800
Mounting Options Large Flange (FL)
Distance From Lead End [in] (G1) 0.250
Attachment Method X = Silver Solder
LINE 4 2193-0788
CE No
Lead End No Heat [in] 'NOM' (D) 1.320
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 113


  • Measurement Minimum
  • Heater Type

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Diameter [in] (B) .746" +/- .002"
Overall Length [in] (A) 11.000
Length Tolerance + /- 2%
Voltage [V] 208
Power [W] 2,500
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type Fiberglass (GGS)
Lead Length [in] (E) 12
Ground Lead Length [in] (E) 12
Sheath Materials Incoloy 800
Mounting Options Large Flange (FL)
Distance From Lead End [in] (G1) 0.250
Attachment Method X = Silver Solder
LINE 4 2193-0788
CE No
Lead End No Heat [in] 'NOM' (D) 1.320
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 113

Specifications

Measurement Minimum 0
Heater Type Cartridge Insertion Heaters
