Watlow Watrod Heater, Double Ended

https://www.branom.com/web/image/product.template/189161/image_1920?unique=c26756c
(0 review)

Voltage: 600
Wattage: 2,500
Watt Density (calc.): 24
Element Diameter: 0.475" Diameter
Sheath Material: Alloy 800 0.035" Wall Thickness
Top Cold End: 2.0000
Bottom Cold End: 2.0000
Catalog Figure Number: WATLOW Catalog Figure No. 1
End Seal: Silicone Resin, 105 degree Celsius
Terminal Assembly: Stud only, 10-32 (no hardware included)
Mounting: No Mounting Required
Surface Finish: Oxide Anneal

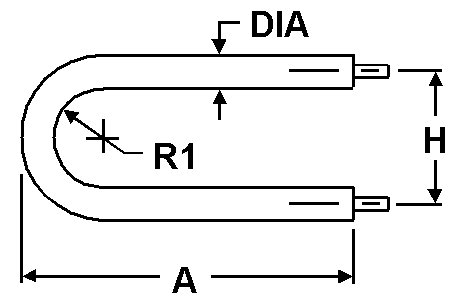

'A' Dimension: 36.0000
180 degree Radius (R1)': 1.0000
'H' Dimension (calculated): 2.5000
Sheath Length (calculated): 72.8125
Marking Part Number: 2191-4837 R7


NON-CANCELLABLE/NON-RETURNABLE


  • Measurement Maximum
  • Measurement Minimum
  • Heater Type

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Voltage: 600
Wattage: 2,500
Watt Density (calc.): 24
Element Diameter: 0.475" Diameter
Sheath Material: Alloy 800 0.035" Wall Thickness
Top Cold End: 2.0000
Bottom Cold End: 2.0000
Catalog Figure Number: WATLOW Catalog Figure No. 1
End Seal: Silicone Resin, 105 degree Celsius
Terminal Assembly: Stud only, 10-32 (no hardware included)
Mounting: No Mounting Required
Surface Finish: Oxide Anneal
'A' Dimension: 36.0000
180 degree Radius (R1)': 1.0000
'H' Dimension (calculated): 2.5000
Sheath Length (calculated): 72.8125
Marking Part Number: 2191-4837 R7


NON-CANCELLABLE/NON-RETURNABLE

Specifications

Measurement Maximum 0
Measurement Minimum 0
Heater Type Tubular Heaters
