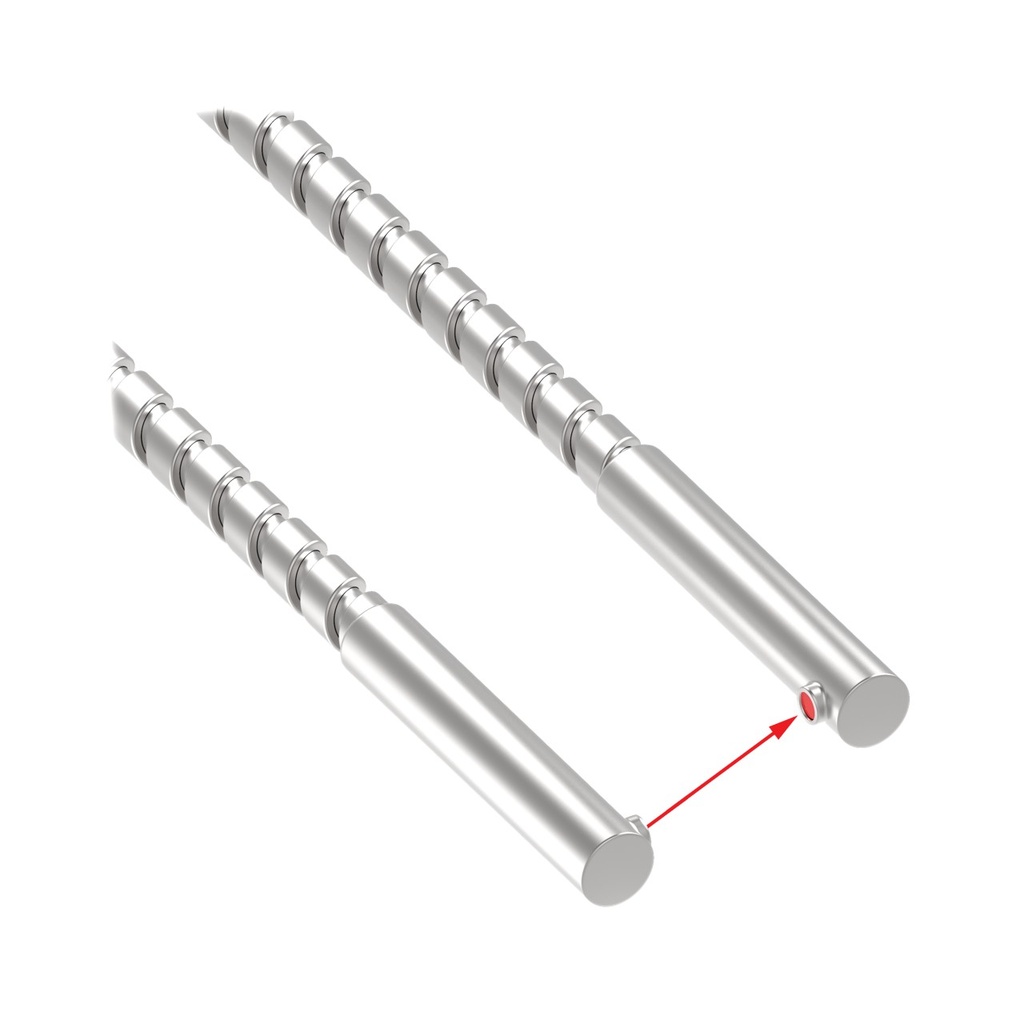

Opposed Mode Individual Glass Fiber 72 INCH long (IA16SMTA)

https://www.branom.com/web/image/product.template/7484/image_1920?unique=c26756c
(0 review)

Features:

  • Opposed Mode Individual Glass Fiber 72 INCH long
  • 0.062 INCH dia. Bundle
  • Stainless Steel Sheath
  • Angled Tip: Modified Tight Angle
  • Max Operating Temperature: 249 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Ferrule
  • Tariff Fiber Meters: 1479.66 fbm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 6.4 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Sideview
  • Termination: Terminated
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1.6 mm
  • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
  • Feature: Flex Relief: No
  • Termination Type: Glass Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 6.4 mm
  • Fiber Length: 1.829 m
  • Fiber Optic Type: Glass
  • Sensing End Segment 2: Sideview
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Minimum Bend Radius: 25 mm

$ 212.00 212.0 USD $ 212.00

$ 212.00

Not Available For Sale
