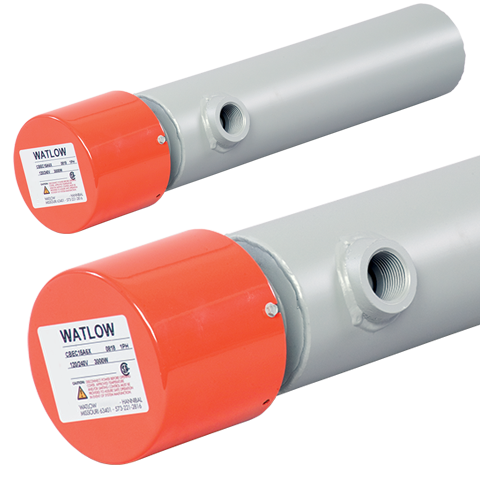

Watlow Circulation Heater, 2.5" Plug, 3 Elements

https://www.branom.com/web/image/product.template/188298/image_1920?unique=c26756c
(0 review)

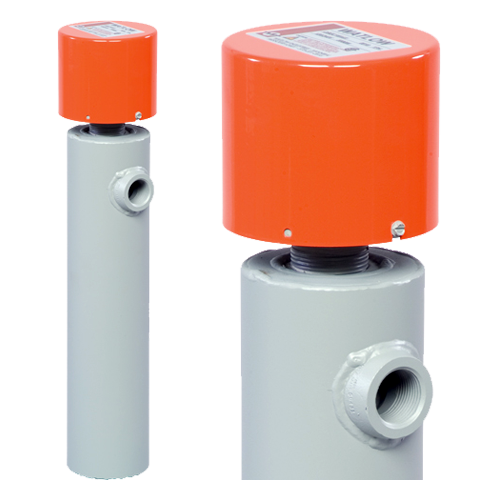

Circ Plug Size: 2 1/2 Inch Plug - 3 Elements
Circ Plug Voltage: 480
Circ Plug Wattage: 7,500
Watt Density: 50.1
B Dimension (Immersed element length): 20.6250
Electrical Phase configuration: 3 Phase - Delta wiring
Plug Material: Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 4.1250
Element Passivation? No
Element End Seal: Epoxy, 90 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Thermowell required? No
Mounting Orientation: Vertical Top
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: Moisture Resistant (standard)
Nameplate Part Number: 2181-9321 CS7


  • Measurement Minimum
  • Input Voltage

This combination does not exist.

Contact Us

Share

Circ Plug Size: 2 1/2 Inch Plug - 3 Elements
Circ Plug Voltage: 480
Circ Plug Wattage: 7,500
Watt Density: 50.1
B Dimension (Immersed element length): 20.6250
Electrical Phase configuration: 3 Phase - Delta wiring
Plug Material: Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 4.1250
Element Passivation? No
Element End Seal: Epoxy, 90 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Thermowell required? No
Mounting Orientation: Vertical Top
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: Moisture Resistant (standard)
Nameplate Part Number: 2181-9321 CS7

Specifications

Measurement Minimum 0
Input Voltage 480 VAC
