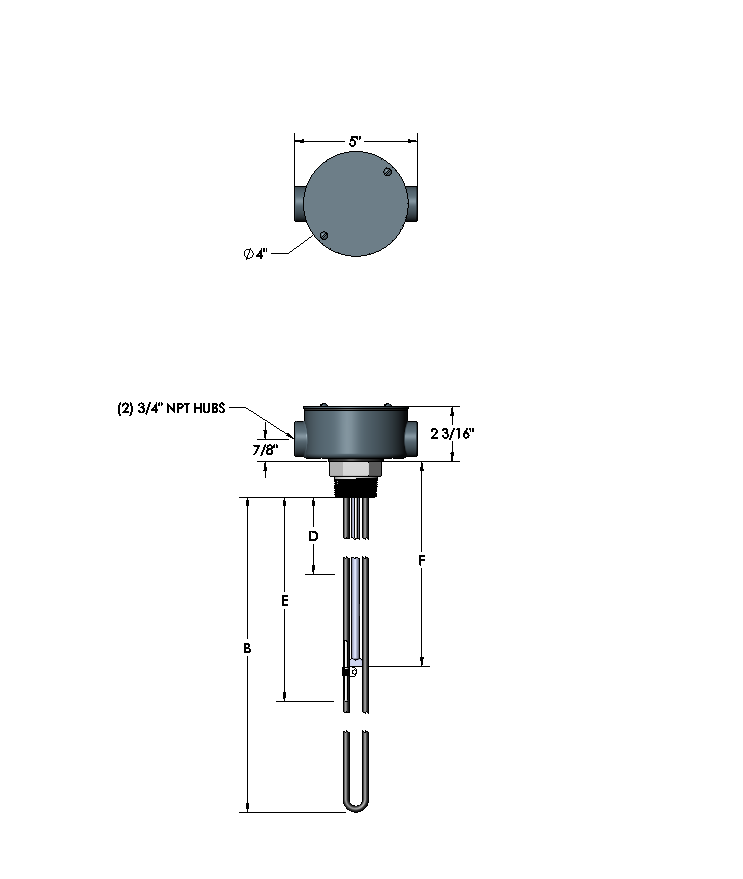

Watlow Circular Plug Standard Tubular Heater
Circ Plug Size: 1 1/4 Inch Plug - 1 Element
Circ Plug Voltage: 480
Circ Plug Wattage: 3,000
Watt Density: 86.9
B Dimension (Immersed element length): 11.1250
Electrical Phase configuration: 3 Phase - Wye wiring
Plug Material: 304 Stainless Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 3.5625
Element Passivation? No
Element End Seal: Epoxy, 130 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Mounting Orientation: Horizontal
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: Moisture Resistant (standard)
Circ Plug Size: 1 1/4 Inch Plug - 1 Element
Circ Plug Voltage: 480
Circ Plug Wattage: 3,000
Watt Density: 86.9
B Dimension (Immersed element length): 11.1250
Electrical Phase configuration: 3 Phase - Wye wiring
Plug Material: 304 Stainless Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 3.5625
Element Passivation? No
Element End Seal: Epoxy, 130 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Mounting Orientation: Horizontal
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: Moisture Resistant (standard)
Specifications
| Measurement Minimum | 0 |
| Input Voltage | 480 VAC |
| Heater Type | Tubular Heaters |
