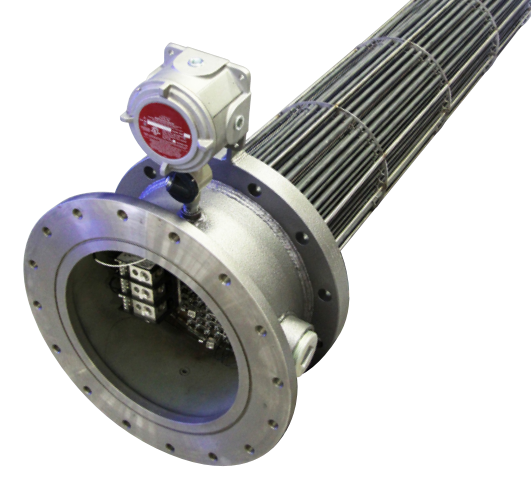

Watlow 14" Flanged Tubular Heater, 480 VAC, 65000W, 72 Elements, 85" Immersion
Flange Voltage: 480
Flange Wattage: 65,000
Watt Density: 4.1
B Dimension (Immersed element length): 85.0000
Number of Elements: 72 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 6
Flange Size: 14 Inch Flange
Flange Class: 150 lb.
Flange Material: 316 Stainless Steel Flange
Sheath Material: 316 SS
Baffles? No Baffles
Cold End Section below the Flange: 12.0000
Sheath Passivation? Yes
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Thermowell required? No
Mounting Orientation: Horizontal
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 56.6250
Stand-off Terminal Enclosure? No
Terminal Enclosure: Moisture Resistant (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2165-7217 FL7
Flange Voltage: 480
Flange Wattage: 65,000
Watt Density: 4.1
B Dimension (Immersed element length): 85.0000
Number of Elements: 72 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 6
Flange Size: 14 Inch Flange
Flange Class: 150 lb.
Flange Material: 316 Stainless Steel Flange
Sheath Material: 316 SS
Baffles? No Baffles
Cold End Section below the Flange: 12.0000
Sheath Passivation? Yes
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Thermowell required? No
Mounting Orientation: Horizontal
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 56.6250
Stand-off Terminal Enclosure? No
Terminal Enclosure: Moisture Resistant (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2165-7217 FL7
Specifications
| Measurement Maximum | 0 |
| Process Connection Type | NPT |
| Measurement Minimum | 0 |
| Heater Type | Tubular Heaters |
