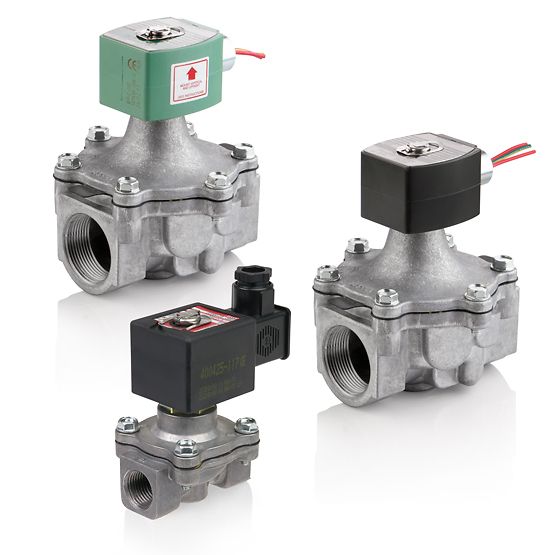

215 Series 2" High-Flow, Aluminum, NO, Gas Shut-Off Valve
The ASCO Series 215, also known as 8215, is an aluminum body, lightweight gas safety shut off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight shut off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.
Features
- Provides high flow with Cv up to 138 (Kv 118)
- Due to the resilient soft seating, these valves are ideal for high flow low pressure air and gas applications.
- A full range of pipe sizes up to 3-inches with both Normally Closed and Normally Open constructions.
- Wide range of standard AC and DC voltages
- Optional 20 million cycle long life quiet design for air service in normally closed and normally open constructions and 1-inch to 2-inch pipe available
The ASCO Series 215, also known as 8215, is an aluminum body, lightweight gas safety shut off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight shut off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.
Features
- Provides high flow with Cv up to 138 (Kv 118)
- Due to the resilient soft seating, these valves are ideal for high flow low pressure air and gas applications.
- A full range of pipe sizes up to 3-inches with both Normally Closed and Normally Open constructions.
- Wide range of standard AC and DC voltages
- Optional 20 million cycle long life quiet design for air service in normally closed and normally open constructions and 1-inch to 2-inch pipe available
Specifications
| 8215 Series 2" HF, NO, Gas Shut-Off Valve | |
|---|---|
| Product Specifications | [G083] 2-3/32" Orifice | 58 Cv Flow, [C083] 2-3/32" Orifice | 58 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof (G083), [EF] Explosionproof (C083), [J] Junction Box (G083), [J] Junction Box (C083), [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, [OF] Open Frame Spade and Screw Terminal Solenoids, [WP] Cable Gland w/Integral Strain Relief (C083) |
| Coil Options | None, [HT] Class H - High Temperature (G083), [HT] Class H - High Temperature (C083), [KF] Class F - High Temperature - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection |
| Lead Length | Standard, 18" [D] |
| Optional Seat/Disc/Etc. Material | None, [V] FKM |
| Optional Vacuum | Without, [VM] Medium Vacuum, [VH] High Vacuum |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Core Guide | POM |
| Valve: Pipe Size | 2 in |
| Valve: Actuation | Solenoid - Direct Acting, Solenoid - Pilot Operated |
| Valve: Body Material | Aluminum |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | NBR |
| Valve: Enclosure Type | Redhat II - Watertight, Redhat II - Explosionproof & Watertight, Redhat - Explosionproof & Raintight, Redhat - Type I |
| Valve: Flow Factor (Cv) | 58.0 |
| Valve: Media | Air-Inert Gas, Fuel Gas |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Max Temperature °F | 125 |
| Valve: Mounting Position | Any, Vertical & Upright |
| Valve: Gas Capacity (Btu/hr) | 3,100,000 |
| Valve: Orifice | 2-3/32in |
| Valve: Seal Material | NBR |
| Valve: Shading Coil | Copper |
| Valve: Springs | Stainless Steel |
| Valve: Function | 2-Way Normally Open |
| Valve: Core Tube | Stainless Steel |
| Valve: Diaphragm Material | NBR |
| Valve: Disc-Holder | PA |
| Valve: Min Temperature °F | 32 |
| Valve: Rider Rings | PTFE |
