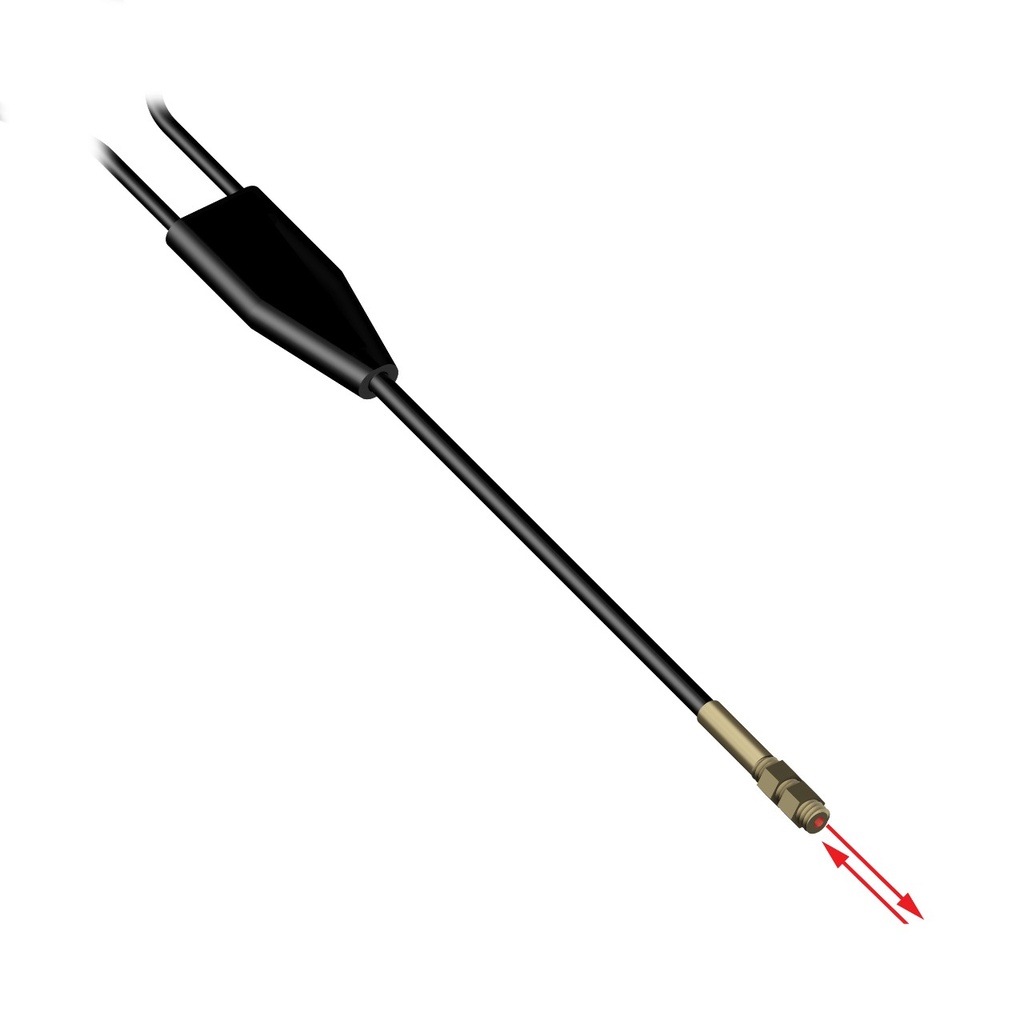

Representative photo. Please check item description for details.

Glass Fiber (BMT.442P)

https://www.branom.com/web/image/product.template/7358/image_1920?unique=c26756c
(0 review)

Features:

  • Glass Fiber
  • Diffuse Mode 1.17 mm dia. Bundle
  • PVC over Moncoil Sheathing
  • .91 m long
  • #8-32 Threaded Sening Tip
  • Max Operating Temperature: 105 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Diffuse
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Thread
  • Tariff Fiber Meters: 85.26 fbm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: #8-32 thread
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Thread
  • Termination: Terminated
  • Sensing End Material (Specific): Brass
  • Feature: Integrated Lens: Yes
  • Core Diameter: 0.7 mm
  • Fiber Sheathing Material (Jacket): PVC over Stainless Steel Monocoil
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Glass Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: #8-32 thread
  • Fiber Length: 0.609 m
  • Fiber Optic Type: Glass
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 25 mm
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Minimum Bend Radius: 25 mm

$ 186.00 186.0 USD $ 186.00

$ 186.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
