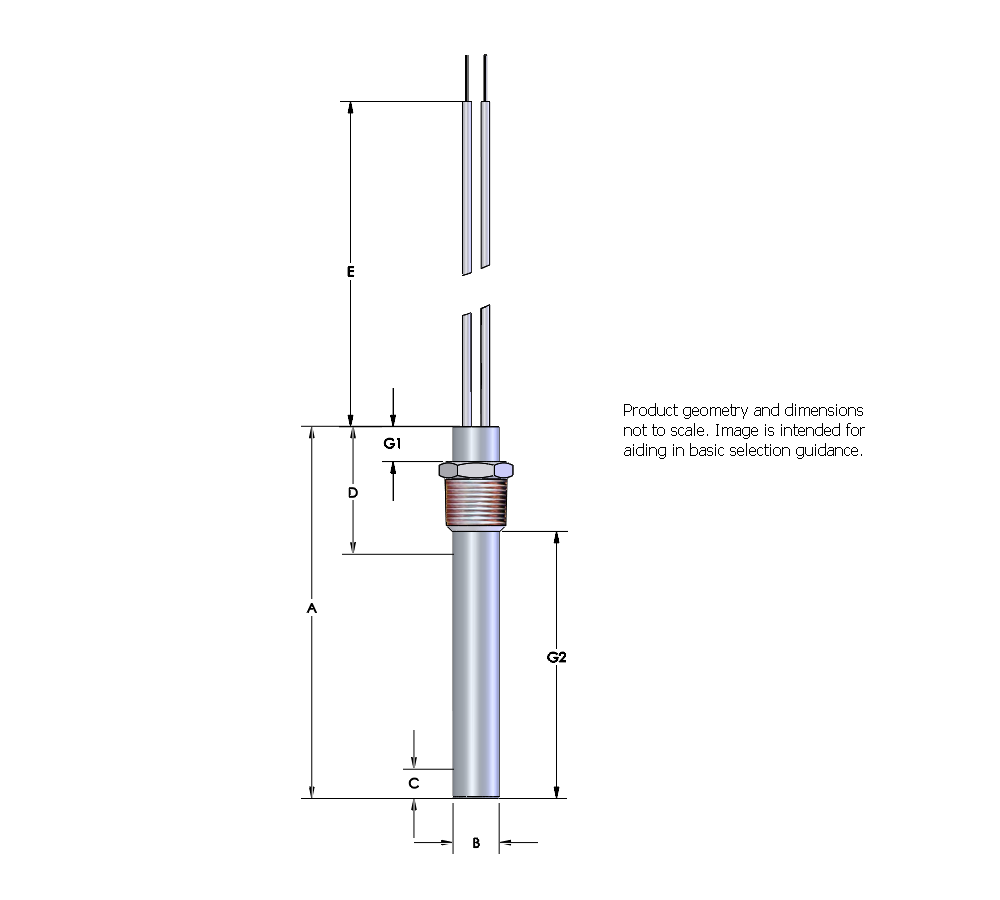

Watlow Firerod Heater, 1/2" Diameter, 3.5" Length, 220V, 400W, 304SS Threaded Fitting, 12" High Temp Leads
Diameter [in] (B) .496" +/- .002"
Overall Length [in] (A) 3.500
Length Tolerance + 0 / - 3/16
Length Tolerance Options +0/- 3/16
Voltage [V] 220
Power [W] 400
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type High Temp (MGT)
Lead Length [in] (E) 12
Sheath Materials Incoloy 800
Mounting Options Single 304 SS Threaded Fitting
Attachment Method W = Weld
LINE 4 2107-3530
CE No
Lead End No Heat[in] 'NOM' 1.000
Disk End No Heat [in] 'NOM' (C) 0.250
Watt Density [w/in2] nom 117
Diameter [in] (B) .496" +/- .002"
Overall Length [in] (A) 3.500
Length Tolerance + 0 / - 3/16
Length Tolerance Options +0/- 3/16
Voltage [V] 220
Power [W] 400
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type High Temp (MGT)
Lead Length [in] (E) 12
Sheath Materials Incoloy 800
Mounting Options Single 304 SS Threaded Fitting
Attachment Method W = Weld
LINE 4 2107-3530
CE No
Lead End No Heat[in] 'NOM' 1.000
Disk End No Heat [in] 'NOM' (C) 0.250
Watt Density [w/in2] nom 117
Specifications
| Measurement Maximum | 0 |
| Stem Length | 3.5 in (88.9 mm) |
| Measurement Minimum | 0 |
| Heater Type | Cartridge Insertion Heaters |
