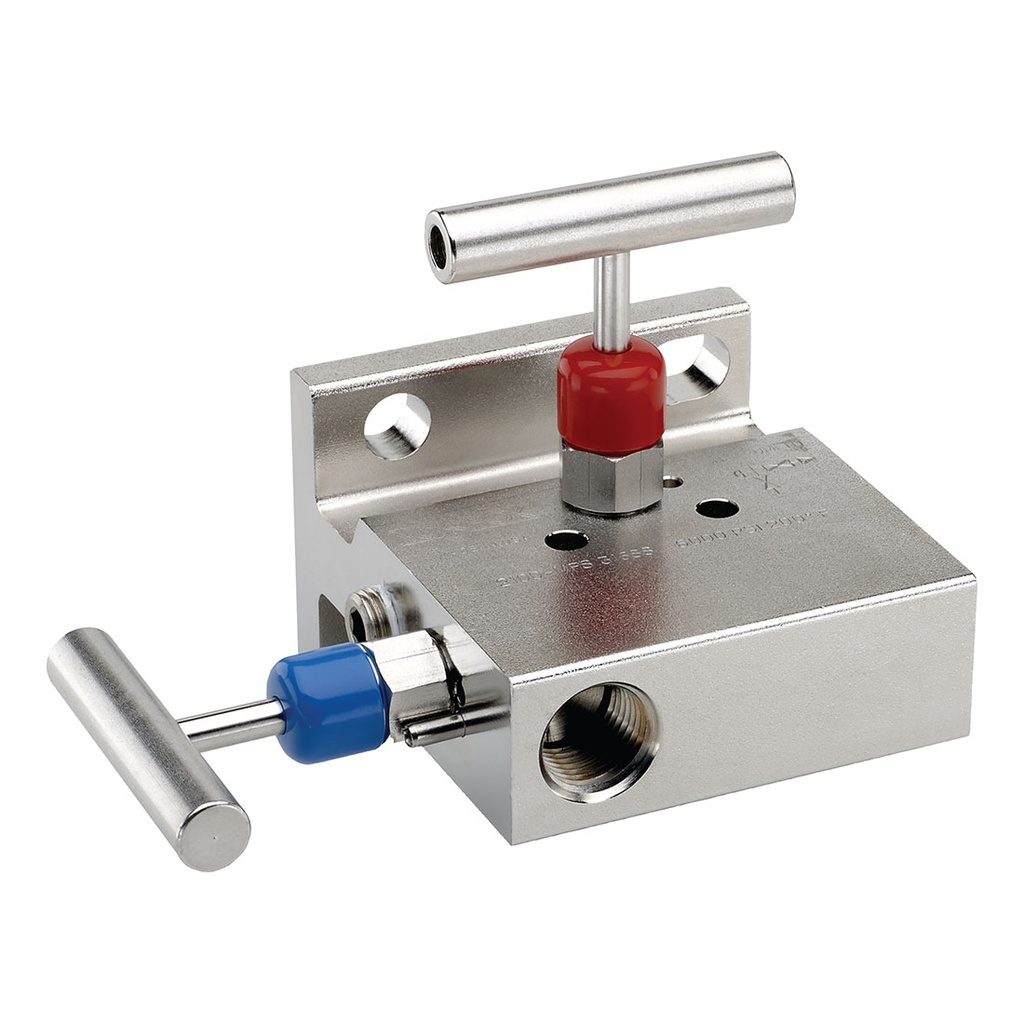

2100 Series 2-Valve Static Pressure Block & Bleed, Soft Seat, Flange x 1/2" NPT Female, 316 SS, 0.187" Orifice
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation

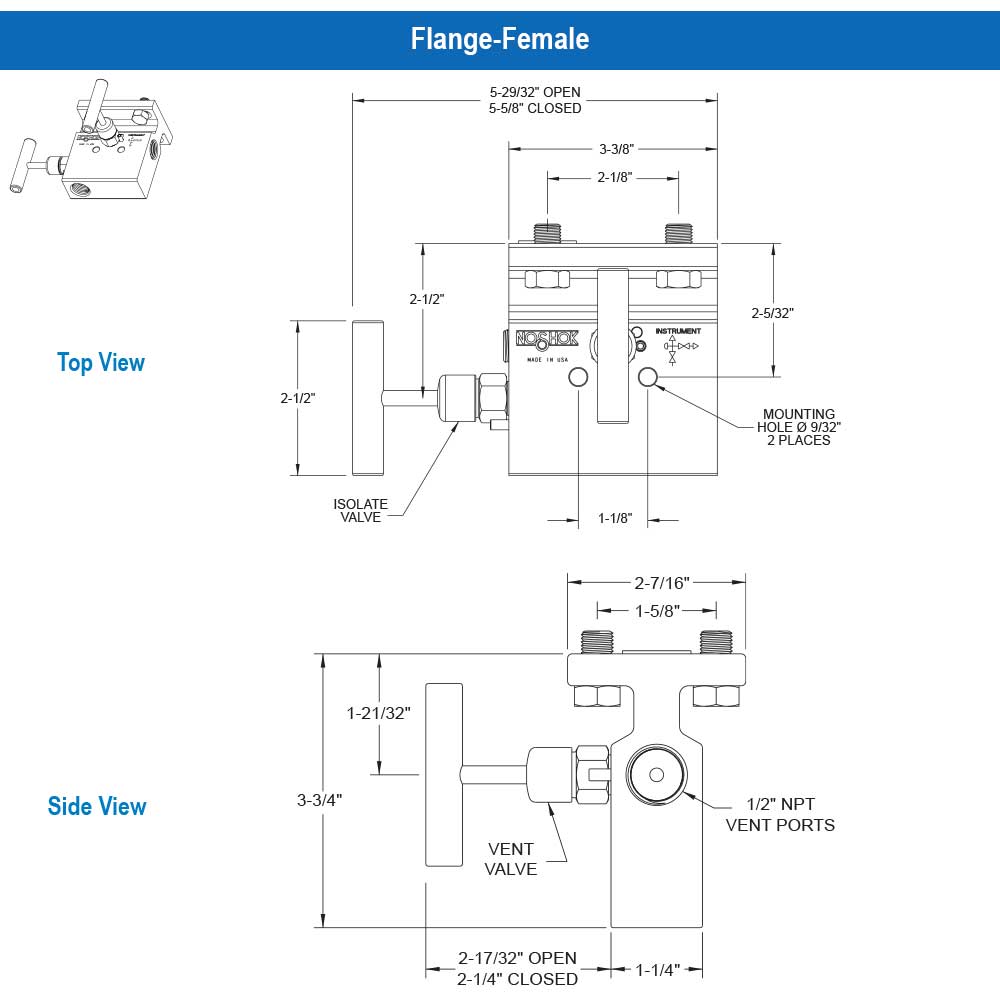

- Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
- Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Valve: Brand | NoShok, Asco |
| Valve: Design | Needle, Manifold |
| Valve: Pipe Size | 1/2 in, 1-1/2 in |
| Valve: Actuation | Solenoid, Solenoid - Pilot Operated, Solenoid |
| Valve: Body Material | Stainless Steel, Stainless Steel, Copper Alloy |
| Valve: Flow Factor (Cv) | 0.76, 22.5 |
| Valve: Media | Air-Inert Gas, Light Oil, Water |
| Valve: Pressure (psi) | > 6000 to 10000 psi (413.7 bar to 389.5 bar), > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Max Temperature °F | 125 |
| Valve: Mounting Position | Vertical & Upright |
| Valve: Type | Automated |
| Valve: Orifice | 3/16in, 1-1/4in |
| Valve: Seats / Seat Insert | NBR |
| Valve: Seal Material | NBR, PTFE |
| Valve: Shading Coil | Copper, Silver |
| Valve: Springs | Stainless Steel |
| Valve: Function | 2-Way Normally Closed |
