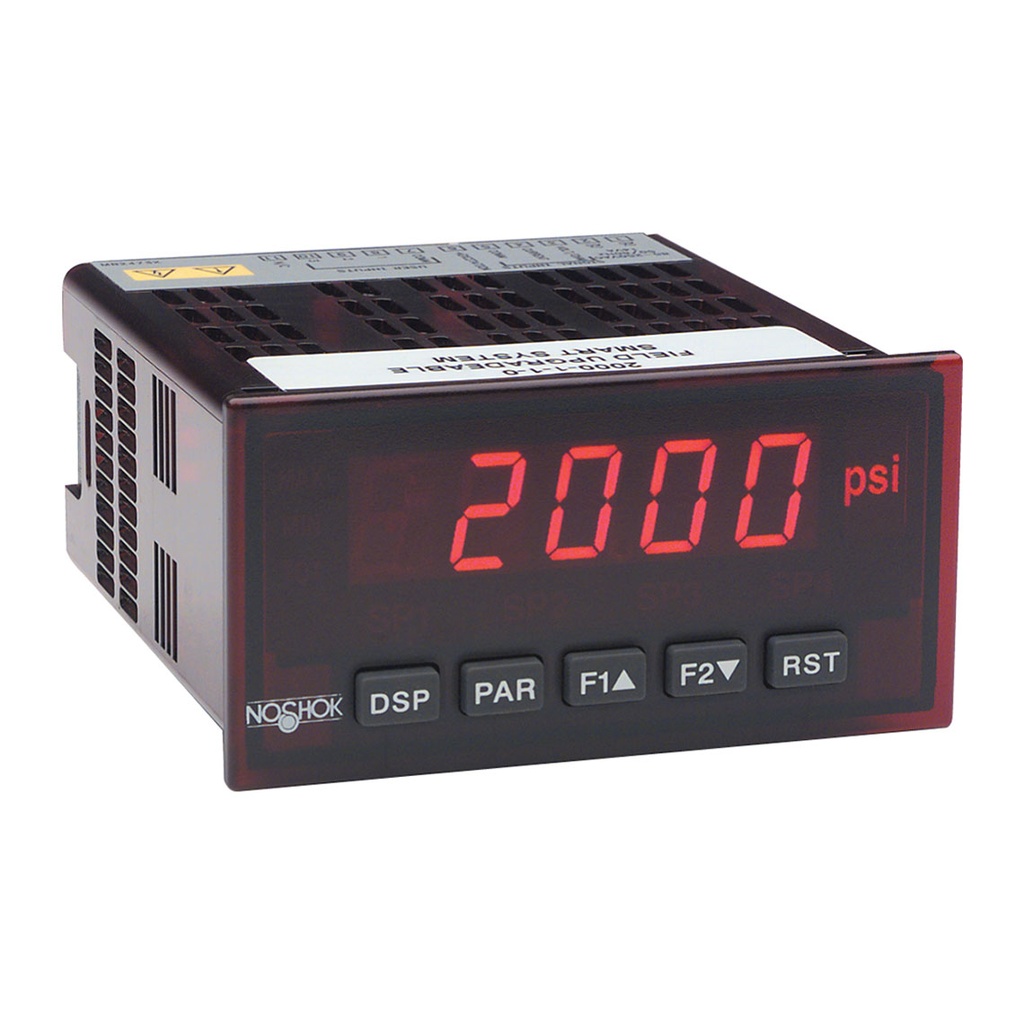

Representative photo. Please check item description for details.
2100 Series Smart System Intelligent Digital Indicator, Dual Current Input, 11 to 36 Vdc
- Accepts a variety of standard process signals and precisely scales them into any desired unit of measurement
- Single input or dual input
- Employs advanced technology for stable, drift-free readout
- Field upgradeable with plug-in option cards; including 4 set point alarms, analog output and serial communication
- 16 point scaling for non-linear processes
- Max. and min. value display
- Accepts a variety of standard process signals and precisely scales them into any desired unit of measurement
- Single input or dual input
- Employs advanced technology for stable, drift-free readout
- Field upgradeable with plug-in option cards; including 4 set point alarms, analog output and serial communication
- 16 point scaling for non-linear processes
- Max. and min. value display
Specifications
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Power Supply | 11-36 VDC |
| Input Communication Protocol | 4-20 mA |
| Ingress Protection | IP65 |
| Vibration | 5-150 Hz, 2g |
| Shock | 25 g |
| Electrical Connector Type | Screw Terminals |
| Process Display | 5 digit, 0.56" Red LED |
| Memory | EEPROM |
| Humidity | <85%, non-condensing |
| Update Rate | 200 ms |
| Altitude | ≤ 2,000 m |
| Linearization | 2-16 points |
| Filtering | 0 to 25 sec |
| Normal Rejection Mode | 60 dB 50/60 Hz |
| NEMA / UL | NEMA 4X |
