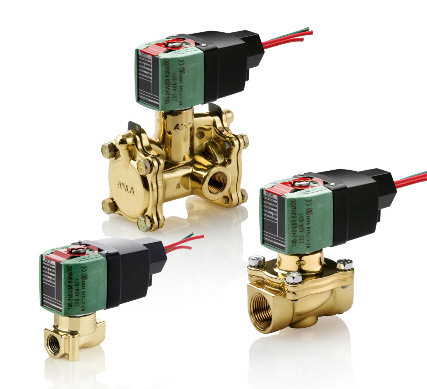

210 Series NC Electronically Enhanced Solenoid Valve
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Increase in DC pressure ratings to AC levels on all
products (up to a 500% improvement) - Lower power operation
- Voltage ranging
- Built-in surge suppression
- Elimination of AC hum
- Increase in AC and DC operating temperatures
- Low solenoid temperature rise
- Longer coil life due to lower operating temperatures
and electrical surge suppression - Solenoid approvals to UL, CSA, and CE directives
- Available with Class I,Division 2 coils (EE prefix)
- RoHS 2 Compliant
2-Way Features
- Two-way (2/2) Next Generation solenoid valves have one inlet port and one outlet port
- Control of air, water, light oil, and non-corrosive media
- Normally closed (opens when energized) and normally open (closed when energized) operation
- Pipe sizes – 1/8 to 2 inch
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Increase in DC pressure ratings to AC levels on all
products (up to a 500% improvement) - Lower power operation
- Voltage ranging
- Built-in surge suppression
- Elimination of AC hum
- Increase in AC and DC operating temperatures
- Low solenoid temperature rise
- Longer coil life due to lower operating temperatures
and electrical surge suppression - Solenoid approvals to UL, CSA, and CE directives
- Available with Class I,Division 2 coils (EE prefix)
- RoHS 2 Compliant
2-Way Features
- Two-way (2/2) Next Generation solenoid valves have one inlet port and one outlet port
- Control of air, water, light oil, and non-corrosive media
- Normally closed (opens when energized) and normally open (closed when energized) operation
- Pipe sizes – 1/8 to 2 inch
Specifications
| Electronically Enhanced Sol Valve | |
|---|---|
| Product Specifications | [P093] Brass | 3/8" Pipe | 5/8" Orifice | 3 Cv Flow, [P006] Brass | 3/8" Pipe | 5/8" Orifice | 3 Cv Flow, [P087] Stainless Steel | 1/2" Pipe | 5/8" Orifice | 4 Cv Flow, [P007] Brass | 1/2" Pipe | 5/8" Orifice | 4 Cv Flow, [P094] Brass | 1/2" Pipe | 5/8" Orifice | 4 Cv Flow, [P088] Stainless Steel | 3/4" Pipe | 5/8" Orifice | 4.5 Cv Flow, [P095] Brass | 3/4" Pipe | 3/4" Orifice | 5 Cv Flow, [P004] Brass | 1" Pipe | 1" Orifice | 13 Cv Flow, [P008] Brass | 1-1/4" Pipe | 1-1/8" Orifice | 15 Cv Flow, [P022] Brass | 1-1/2" Pipe | 1-1/4" Orifice | 22.5 Cv Flow, [P100] Brass | 2" Pipe | 1-3/4" Orifice | 43 Cv Flow |
| Solenoid Option | None, [EE] Class I, Division 2 General Purpose |
| Coil Options | None, [SU] Class H - High Temperature - DIN Connection |
| Optional Seat/Disc/Etc. Material | None, [E] EPDM (Ethylene Propylene), [N] Oxygen, [V] FKM, [V] FKM (P004), [V] FKM (P022, P100), [NV] Oxygen / FKM |
| Optional Manual Operator | Without, [MO] Manual Operator |
| Optional Mounting Bracket | Without, [MB] Mounting Bracket |
| Optional Lead-Free | Without, [LF] Lead-Free (P004), [LF] Lead-Free (P008), [LF] Lead-Free (P022), [LF] Lead-Free (P093), [LF] Lead-Free (P094), [LF] Lead-Free (P095), [LF] Lead-Free (P100) |
| Optional Vacuum | Without, [VH] High Vacuum |
| Voltage | AC100/240, DC12-24, AC24-120 |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 3/8 in, 1/2 in, 3/4 in, 1-1/2 in, 2 in |
| Valve: Media | Water, Light Oil, Air-Inert Gas |
| Valve: Function | 2-Way Normally Closed |
| Valve: Enclosure Type | Watertight, Hazardous Locations and Watertight |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Orifice | 5/8in, 3/4in, 1-1/4in, 1-3/4in |
| Valve: Springs | Stainless Steel |
| Valve: Shading Coil | Silver, Copper |
| Valve: Actuation | Solenoid |
| Valve: Brand | Asco |
| Valve: Flow Factor (Cv) | 4.0, 5.0, 22.5, 43 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Min Temperature °F | 14 |
| Valve: Max Temperature °F | 140 |
| Valve: Disc Material | NBR |
| Valve: Seal Material | NBR |
