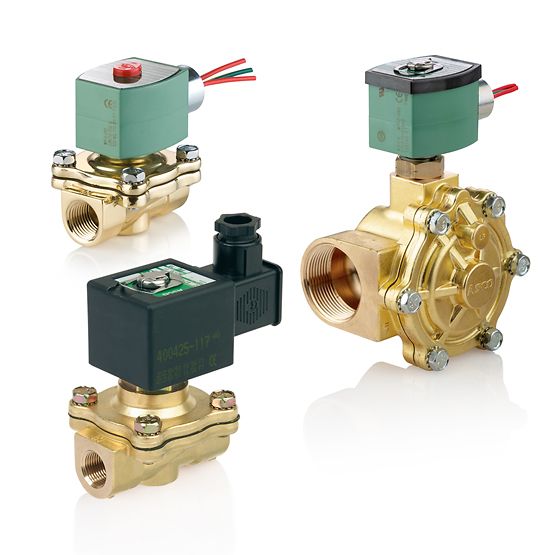

210 Series 2-1/2" NO, 2-Way Solenoid Valve
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Alternative Products
Specifications
| 8210 Series 2-1/2" NO Solenoid Valve | |
|---|---|
| Solenoid Option | None, [EF] Explosionproof |
| Coil Options | None, [HT] Class H - High Temperature |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Seat/Disc/Etc. Material | None, [V] FKM |
| Voltage | AC 24/60, AC 110/50, AC 120/60, AC 120/60 (110/50), AC 220/50, AC 240/60, AC 240/60 (220/50), DC 6, DC 12, DC 24, DC 120, DC 240 |
| Product Specifications | [G104] Brass | 1-3/4" Orifice | 45 Cv Flow |
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid - Pilot Operated |
| Valve: Media | Water, Light Oil, Air-Inert Gas |
| Valve: Enclosure Type | Redhat II - Watertight, Redhat - Explosionproof & Watertight, Redhat II - Explosionproof & Watertight, Redhat - Type I |
| Valve: Body Material | Copper Alloy |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Springs | Stainless Steel |
| Valve: Shading Coil | Copper, Silver |
| Valve: Disc-Holder | PA |
| Valve: Orifice | 1-3/4in |
| Valve: Function | 2-Way Normally Open |
| Valve: Brand | Asco |
| Valve: Min Temperature °F | 32 |
| Valve: Max Temperature °F | 125 |
| Valve: Mounting Position | Any |
| Valve: Flow Factor (Cv) | 45 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Disc Material | NBR, PTFE |
| Valve: Seal Material | NBR, PTFE |
| Valve: Pipe Size | 2-1/2in |
