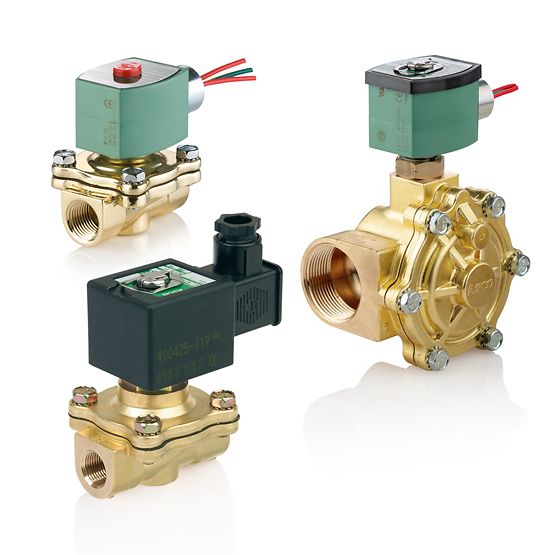

210 Series 1" NC, 2-Way Solenoid Valve
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Alternative Products
Specifications
| 8210 Series 1" NC Solenoid Valve | |
|---|---|
| Product Specifications | [G004] Brass | 1" Orifice | 13 Cv Flow, [G027] Brass | 1" Orifice | 13.5 Cv Flow, [G054] Brass | 1" Orifice | 13 Cv Flow, [G078] Brass | 1" Orifice | 13.5 Cv Flow, [G089] Stainless Steel | 1" Orifice | 13 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof, [EF] Explosionproof (G054, G027, G089), [EF] Explosionproof (G078), [EV] Class I, Division 1 Explosionproof w/316 SS Hub and SS Base Plate, [J] Junction Box, [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G027, G054, G089), [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (G089), [OF] Open Frame Spade and Screw Terminal Solenoids, [OP] Panel Mount Spade, Screw and DIN Terminal Solenoids |
| Coil Options | None, [HB] Class H - Intermediate Power, [HT] Class H - High Temperature, [KF] Class F - High Temperature - Screw Terminals, [KH] Class H - High Temperature - Screw Terminals, [KP] Class F - Intermediate Power - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SD] Class F - Intermediate Power - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [SP] Class F - Intermediate Power - Spade Terminals, [SP] Class F - Intermediate Power - Spade Terminals (G078), [SS] Class H - Intermediate Power - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection, [SV] Class H - Intermediate Power - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Seat/Disc/Etc. Material | None, [E] EPDM (Ethylene Propylene), [E] EPDM (Ethylene Propylene) (G078), [J] CR (Chloroprene, Neoprene) (G004, G054, G089), [N] Oxygen (G004, G027, G054, G089), [N] Oxygen (G078), [V] FKM, [NV] Oxygen / FKM (G004, G054, G089), [NV] Oxygen / FKM (G027), [NV] Oxygen / FKM (G078), [R] Resilient |
| Optional Hot Water Construction | Without, [HW] Hot Water Construction |
| Optional Low Temperature | Without, [LT] Low Temperature |
| Optional Manual Operator | Without, [MO] Manual Operator |
| Optional Lead-Free | Without, [LF] Lead-Free |
| Optional Vacuum | Without, [VM] Medium Vacuum, [VH] High Vacuum |
| Voltage | AC 110/50, AC 120/60, AC 120/60 (110/50), AC 220/50, AC 24/60, AC 240/60, AC 240/60 (220/50), DC 6, DC 12, DC 12 (G054), DC 12 (G089), DC 24, DC 24 (G054), DC 24 (G089), DC 120, DC 120 (G054), DC 120 (G089), DC 240, DC 240 (G054) |
| Valve Features | |
|---|---|
| Valve: Seal Material | PTFE, NBR |
| Valve: Pipe Size | 1 in |
| Valve: Actuation | Solenoid - Pilot Operated |
| Valve: Media | Water, Light Oil, Air-Inert Gas |
| Valve: Enclosure Type | Redhat II - Explosionproof & Watertight, Redhat II - Watertight, Redhat - Explosionproof & Watertight, Redhat - Type I |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Springs | Stainless Steel |
| Valve: Shading Coil | Copper, Silver |
| Valve: Disc-Holder | PA |
| Valve: Orifice | 1in |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Function | 2-Way Normally Closed |
| Valve: Min Temperature °F | 32 |
| Valve: Max Temperature °F | 125 |
| Valve: Mounting Position | Any, Vertical & Upright |
| Valve: Flow Factor (Cv) | 13.5, 13.0 |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
| Valve: Disc Material | NBR, PTFE |
