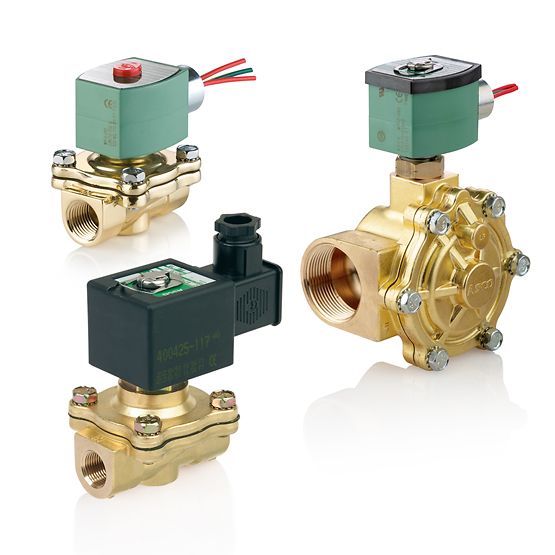

210 Series 1-1/4" NC, 2-Way Solenoid Valve
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Alternative Products
Specifications
| 8210 Series 1-1/4" NC Solenoid Valve | |
|---|---|
| Product Specifications | [G008] Brass | 1-1/8" Orifice | 15 Cv Flow, [G055] Brass | 1-1/8" Orifice | 15 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof (G008), [EF] Explosionproof (G055), [J] Junction Box, [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G008), [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G055), [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, [HT] Class H - High Temperature, [KF] Class F - High Temperature - Screw Terminals, [KH] Class H - High Temperature - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SD] Class F - Intermediate Power - DIN Connection (G055), [SF] Class F - High Temperature - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Seat/Disc/Etc. Material | None, [E] EPDM (Ethylene Propylene), [N] Oxygen, [V] FKM, [NV] Oxygen / FKM |
| Optional Hot Water Construction | Without, [HW] Hot Water Construction |
| Optional Manual Operator | Without, [MO] Manual Operator |
| Optional Lead-Free | Without, [LF] Lead-Free |
| Voltage | AC 24/60, AC 110/50, AC 120/60, AC 120/60 (110/50), AC 220/50, AC 240/60, AC 240/60 (220/50), DC 6, DC 12, DC 24, DC 120, DC 240 |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Pipe Size | 1-1/4 in |
| Valve: Actuation | Solenoid - Pilot Operated |
| Valve: Body Material | Copper Alloy |
| Valve: Core and Plugnut | 430F SS |
| Valve: Disc Material | NBR, PTFE |
| Valve: Enclosure Type | Redhat II - Watertight, Redhat - Type I, Redhat II - Explosionproof & Watertight, Redhat - Explosionproof & Watertight |
| Valve: Flow Factor (Cv) | 15.0 |
| Valve: Media | Water, Light Oil, Air-Inert Gas |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Max Temperature °F | 125 |
| Valve: Mounting Position | Any |
| Valve: Orifice | 1-1/8in |
| Valve: Seal Material | NBR, PTFE |
| Valve: Shading Coil | Copper, Silver |
| Valve: Springs | 302 SS |
| Valve: Function | 2-Way Normally Closed |
| Valve: Core Tube | 305 SS |
| Valve: Disc-Holder | PA |
| Valve: Min Temperature °F | 32 |
