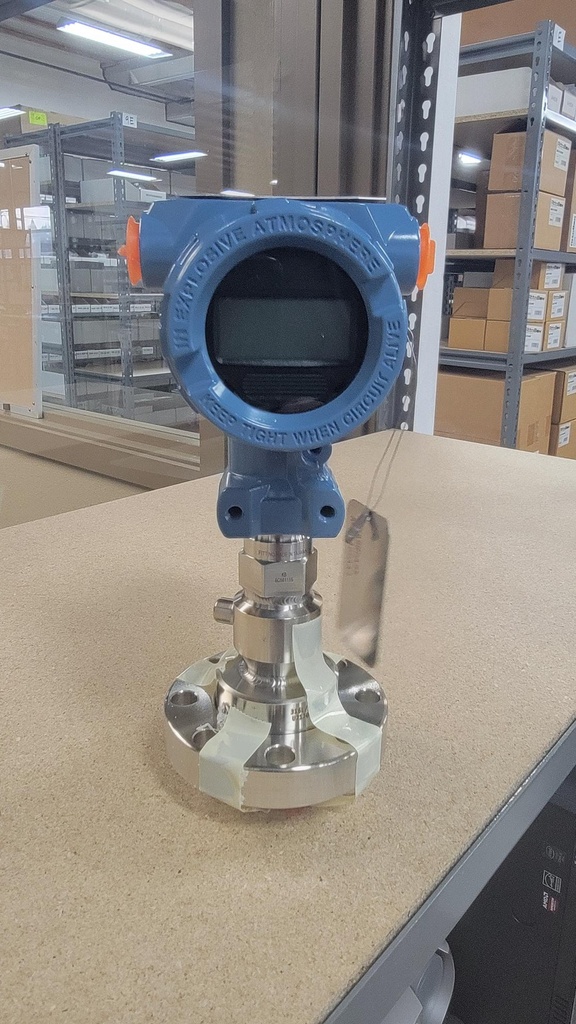

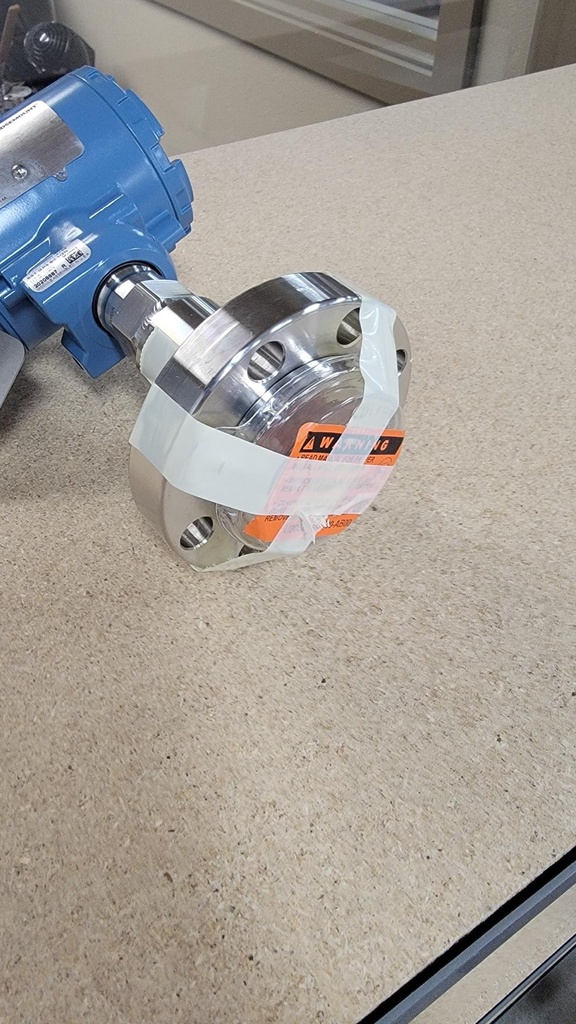

Representative photo. Please check item description for details.

2088 Gage Pressure Transmitter (0-800 psig) with 1199 Remote Seals Assemblly

https://www.branom.com/web/image/product.template/504877/image_1920?unique=c26756c
(0 review)

1.  2088 Rosemount 2088 Gage and Absolute Pressure Transmitter

    G Transmitter Type: Gage

    3 Pressure Ranges: -14.7 to 800 psi (-1.01 to 55.2 bar)

    S Transmitter Output: 4-20 mA dc / Digital HART Protocol

    22 Material of Construction, Isolating Diaphragm, Fill Fluid: 316L SST, 316L SST, Silicone

    A Process Connection: 1/2-14 NPT Female

    1 Conduit Entry: 1/2-14 NPT

    S1 Diaphragm Seal Assemblies: Assemble to one Rosemount 1199 diaphragm seal

    M5 Display and Interface Options: LCD Display, configured for Engineering Units

    B4 Mounting Brackets: SST mounting bracket with SST Bolts

    Q4 Calibration Certificate: Calibration certificate


2.  1199 REMOTE SEALS

    W Connection Type / Seal System / Seal Location: Coplanar: Welded-repairable, One or two seal system, High side | In-line: All welded | Ranges 1-5

    D Fill Fluid: Silicone 200

    A Connection Description/Capillary Id: Direct Mount

    95 Capillary Length/Direct Mount: Direct Mount, No Extension - One Seal System - All Welded

    A Industry Standard: ASME B1.20.1

    RTW Seal Style: Threaded

    3 Process Connection: 1/2-14 NPT

    0 Flange/Pressure Rating: 2500 PSI ANSI (172 BAR EN 10226-1)

    D Upr Hsg/Flange Matl: 316L/316

    A Diaphragm Material: 316L SS Diaphragm

    A Flushing Connection Ring Material (Lower Housing) | Extension Length: 316 Or 316L SS Lower Hsg

    3 Flushing Connections | Additional Extension Length: 2 (1/4-18 NPT)



$ 4,758.85 4758.85 USD $ 4,758.85

$ 4,758.85

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    1.  2088 Rosemount 2088 Gage and Absolute Pressure Transmitter

        G Transmitter Type: Gage

        3 Pressure Ranges: -14.7 to 800 psi (-1.01 to 55.2 bar)

        S Transmitter Output: 4-20 mA dc / Digital HART Protocol

        22 Material of Construction, Isolating Diaphragm, Fill Fluid: 316L SST, 316L SST, Silicone

        A Process Connection: 1/2-14 NPT Female

        1 Conduit Entry: 1/2-14 NPT

        S1 Diaphragm Seal Assemblies: Assemble to one Rosemount 1199 diaphragm seal

        M5 Display and Interface Options: LCD Display, configured for Engineering Units

        B4 Mounting Brackets: SST mounting bracket with SST Bolts

        Q4 Calibration Certificate: Calibration certificate


    2.  1199 REMOTE SEALS

        W Connection Type / Seal System / Seal Location: Coplanar: Welded-repairable, One or two seal system, High side | In-line: All welded | Ranges 1-5

        D Fill Fluid: Silicone 200

        A Connection Description/Capillary Id: Direct Mount

        95 Capillary Length/Direct Mount: Direct Mount, No Extension - One Seal System - All Welded

        A Industry Standard: ASME B1.20.1

        RTW Seal Style: Threaded

        3 Process Connection: 1/2-14 NPT

        0 Flange/Pressure Rating: 2500 PSI ANSI (172 BAR EN 10226-1)

        D Upr Hsg/Flange Matl: 316L/316

        A Diaphragm Material: 316L SS Diaphragm

        A Flushing Connection Ring Material (Lower Housing) | Extension Length: 316 Or 316L SS Lower Hsg

        3 Flushing Connections | Additional Extension Length: 2 (1/4-18 NPT)
