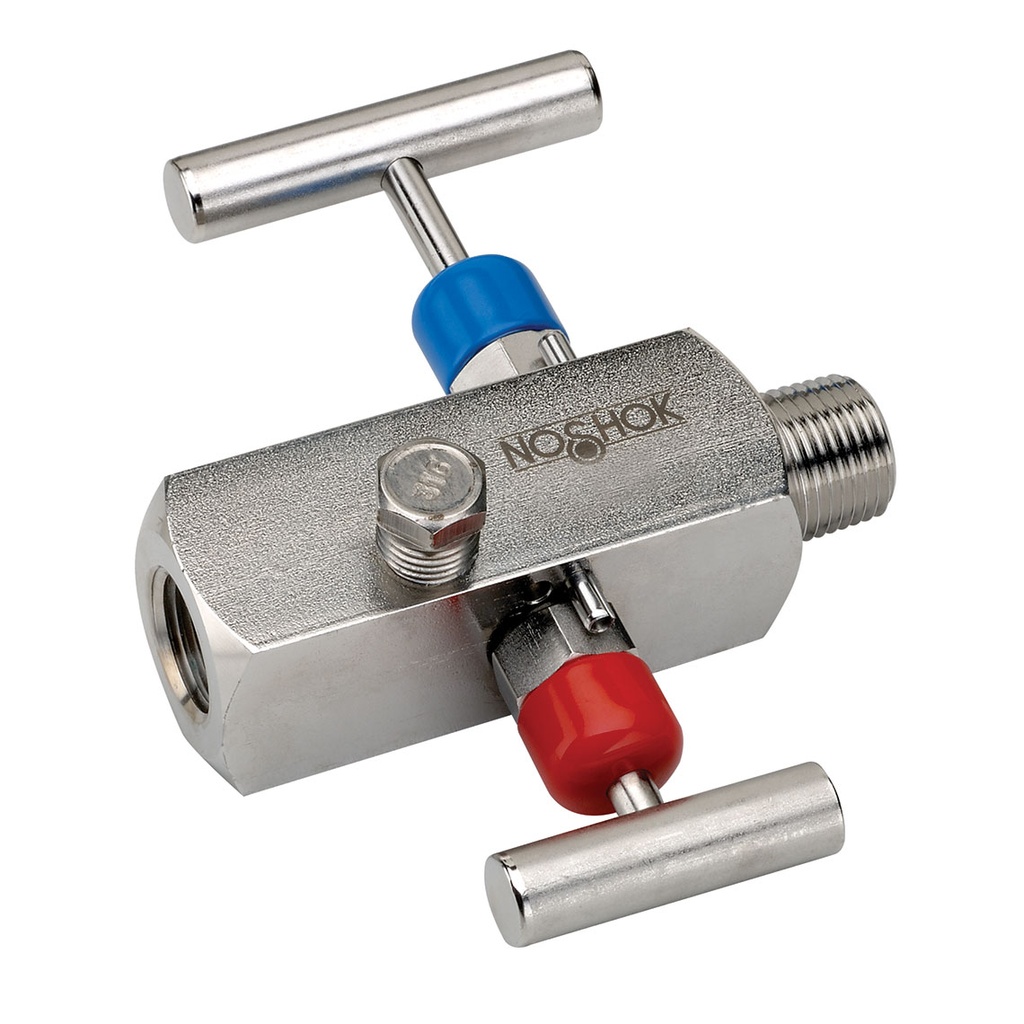

2070 Series 2-Valve Block & Bleed, Hard Seat Needle Valve, 1/2" NPT, Male x Female, 316 SS, 0.187" Orifice
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids, and the bleed valve exhausts upstream fluids enabling instruments to be removed without disturbing the permanent piping installation
- The 1/4" NPT vent plug is located 90º to the left and may be removed and replaced with exhaust piping to direct the fluids to a safe location
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids, and the bleed valve exhausts upstream fluids enabling instruments to be removed without disturbing the permanent piping installation
- The 1/4" NPT vent plug is located 90º to the left and may be removed and replaced with exhaust piping to direct the fluids to a safe location
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Valve: Brand | NoShok |
| Valve: Design | Needle |
| Valve: Pipe Size | 1/2 in |
| Valve: Body Material | Stainless Steel, Stainless Steel |
| Valve: Flow Factor (Cv) | 0.44 |
| Valve: Pressure (psi) | > 500 to 1000 psi (34.47 to 68.95 bar) |
| Valve: Orifice | 3/16in |
