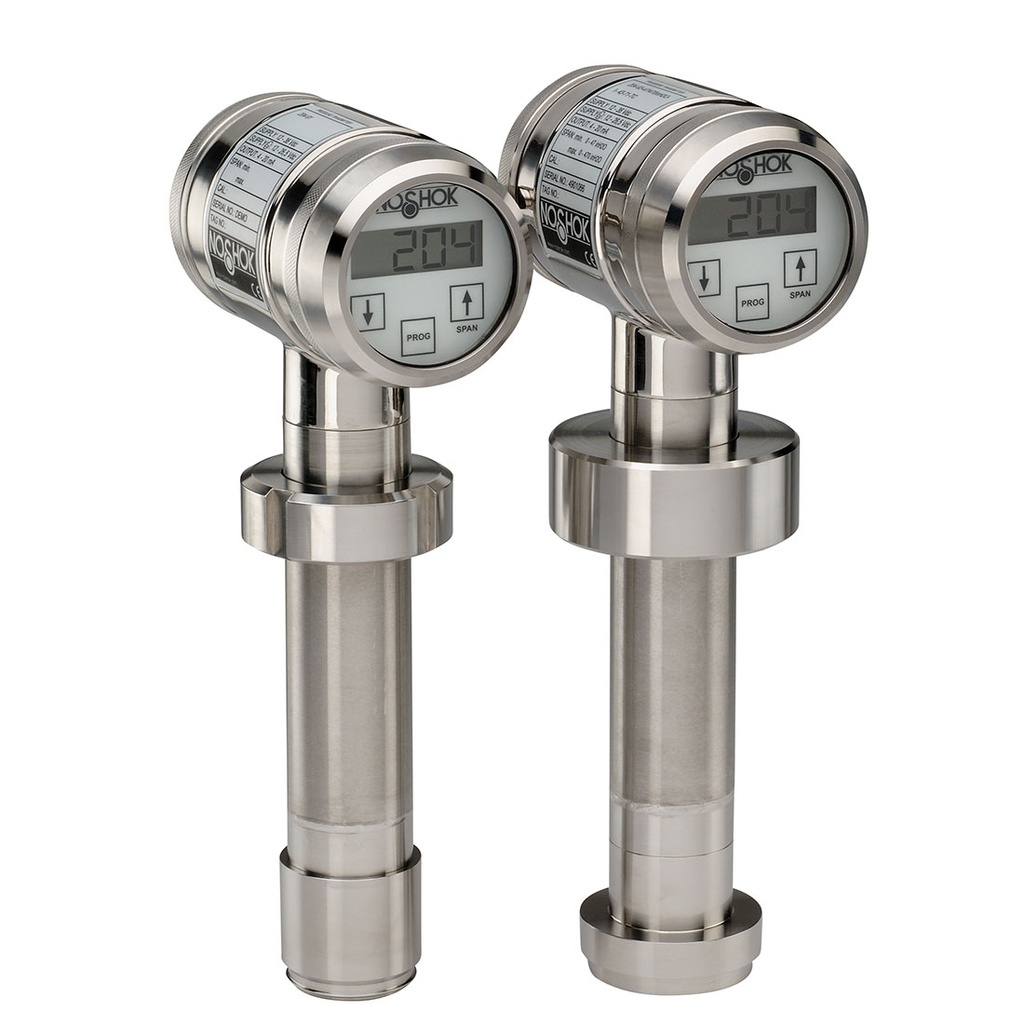

Representative photo. Please check item description for details.
20 Series Sanitary Transmitter, Tank Mate Medium - 6", Range Adjustable from 0 – 47”H2O to 0 – 470”H2O, 0.1% of adjusted span, 4-20 mA/2-wire, M12 x 1 (4 pin)
- Easy programming and range adjustment without test pressure via on-board display
- 10:1 turn down
- Active temperature compensation
- 360º rotatable display
- Hart® protocol output available
Applications:
- Food & beverage
- Dairy
- Chemical processing
- Pharmaceutical
WARNING: This product can expose you to chemicals including Chromium (VI) and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Easy programming and range adjustment without test pressure via on-board display
- 10:1 turn down
- Active temperature compensation
- 360º rotatable display
- Hart® protocol output available
Applications:
- Food & beverage
- Dairy
- Chemical processing
- Pharmaceutical
WARNING: This product can expose you to chemicals including Chromium (VI) and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Measurement Maximum | 58.0 |
| Process Connection Type | Tank Mate Medium |
| Pressure Range | 6 psig to 58 psig (160 inH2O to 1,600 inH2O) |
| Min Operating Pressure | 6 psig |
| Max Operating Pressure | 58 psig |
| Min Operating Temperature | -4 °F |
| Product Unit of Measure | psig |
| Max Operating Temperature | 212 °F |
| Process Connection Size | 6" |
| Accuracy | 0.1% of adjusted span |
| Case Material | 304 SS |
| Wetted Material | 316 SS |
| Measurement Minimum | 6 |
| Output Communication Protocol | 4-20 mA |
| Input Voltage | 12-36 VDC |
| Ingress Protection | IP66 |
| Response Time | ≤150 ms |
| Electrical Connector Type | M12 x 1 (4-pin) |
| Cable Type | M12 x 1 (4-pin) |
