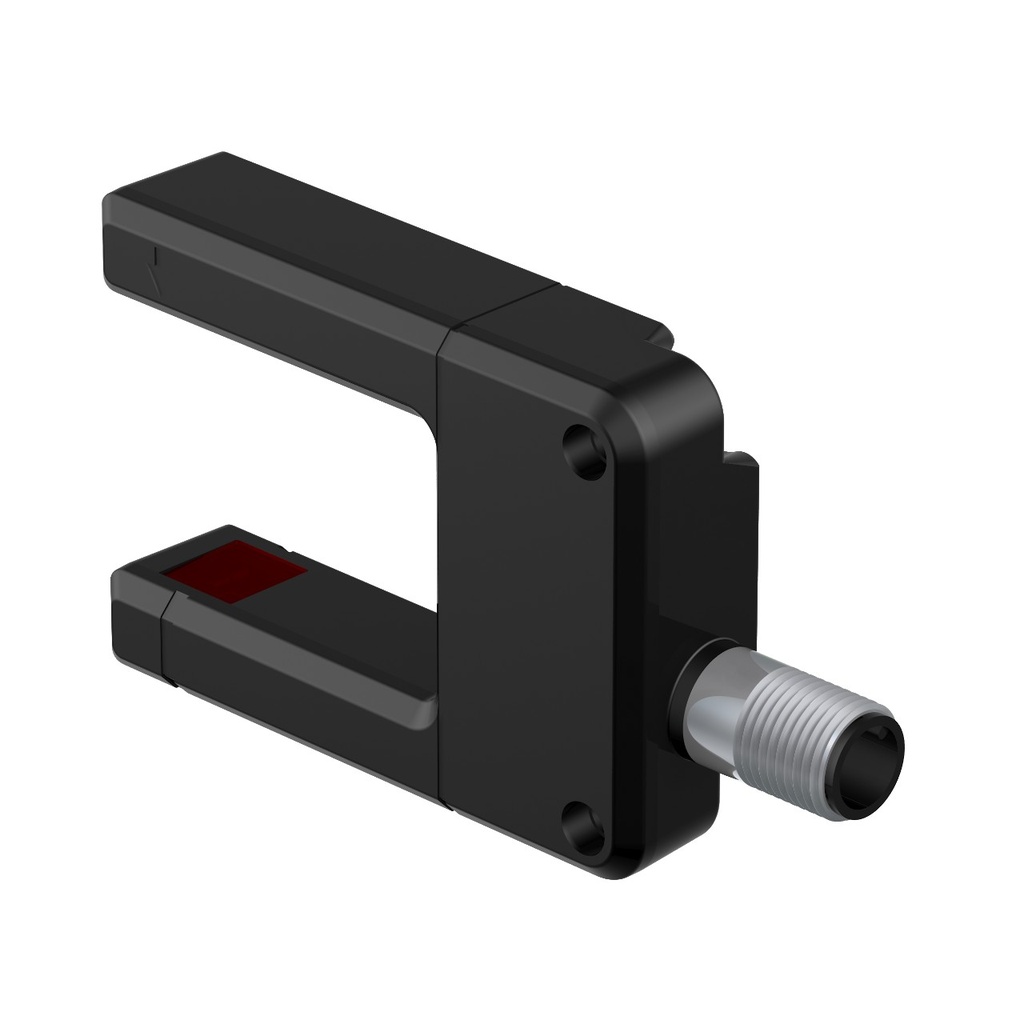

VISIBLE RED OEM SLOT SENSOR, 5-pin integral Euro (SLO30VB6VQ)

https://www.branom.com/web/image/product.template/6960/image_1920?unique=c26756c
(0 review)

Features:

  • SLO30VB6VQ VISIBLE RED OEM SLOT SENSOR, 5-pin integral Euro
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP67
  • Repeatability (µs): 250
  • Housing Style: Slot
  • Max Sensing Distance: 30 mm
  • Sensing Mode (Detailed): Emitter/Receiver Pair
  • Number of Beams: 1
  • Housing Material_: Thermoplastic
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Output: Bipolar (NPN & PNP)
  • Number of Pins: 5
  • Output Response Time: 1 ms
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED
  • Max Sensing Range: 30 mm
  • Slot Depth/Array Length (mm): 45 mm
  • Slot Overall Depth (mm): 72 mm

$ 138.00 138.0 USD $ 138.00

$ 138.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • SLO30VB6VQ VISIBLE RED OEM SLOT SENSOR, 5-pin integral Euro
    • Min Operating Temperature: -40 °C
    • Max Operating Temperature: 70 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Ingress Protection: IP67
    • Repeatability (µs): 250
    • Housing Style: Slot
    • Max Sensing Distance: 30 mm
    • Sensing Mode (Detailed): Emitter/Receiver Pair
    • Number of Beams: 1
    • Housing Material_: Thermoplastic
    • Feature: Quick Disconnect: Yes
    • Quick Disconnect Type: M12
    • Output: Bipolar (NPN & PNP)
    • Number of Pins: 5
    • Output Response Time: 1 ms
    • Operation: Light/Dark Operate
    • Adjustments: N/A
    • Connection Type: Integral QD
    • NEMA / UL: NEMA 6
    • Indicator Type: LED
    • Max Sensing Range: 30 mm
    • Slot Depth/Array Length (mm): 45 mm
    • Slot Overall Depth (mm): 72 mm
